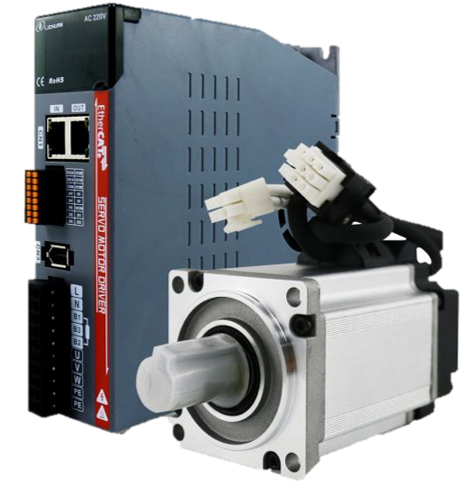

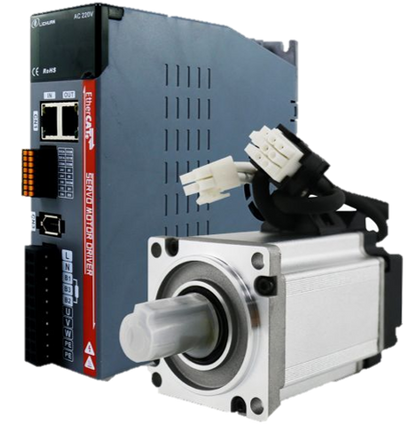

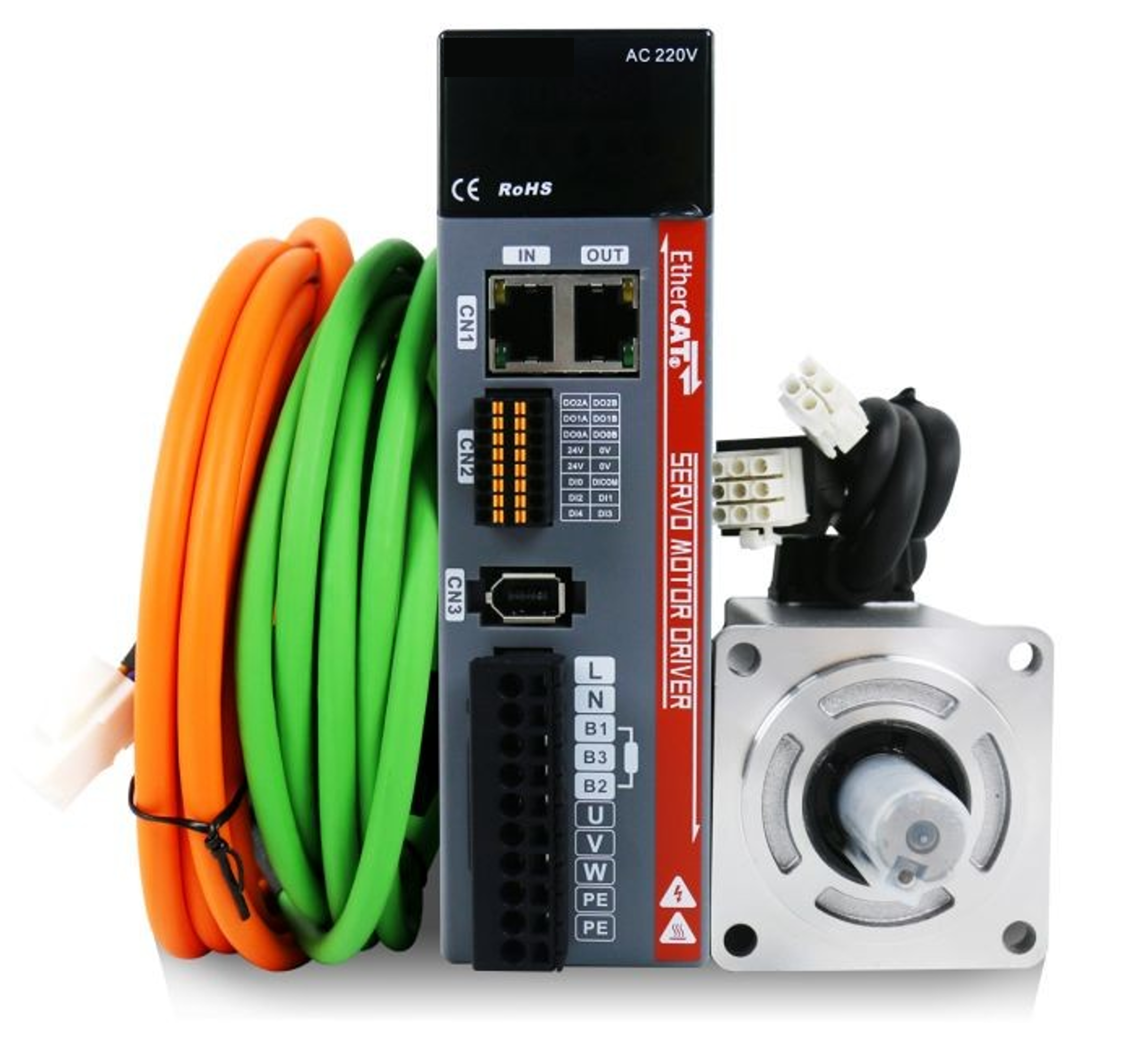

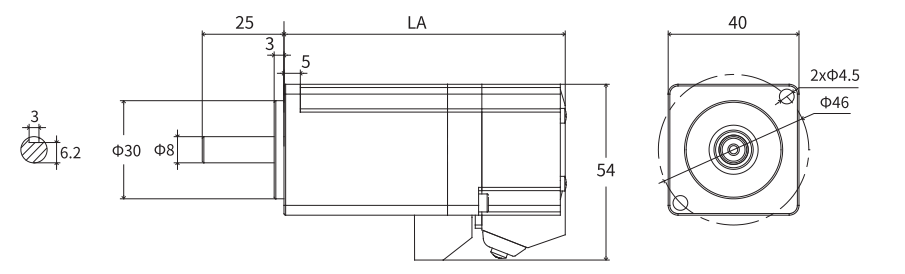

EtherCat Servo Motor (40mm [Nema23] / 100W)

This EtherCAT AC servo motor set is characterized by particularly smooth running and low noise levels, making it ideal for applications with high demands on precision and reliability in industrial automation.

Characteristics:

·         Power: 100W / Speed: 3000 rpm / Torque: 0.32Nm

·         Variant with brake (WB) and without brake (NB)

Supported encoders:

·         17-bit / 23-bit incremental encoder

·         17-bit / 23-bit Absolute value encoder

Areas of application:

CNC machines / milling machines / packaging machines / laser processing / engraving machines and many other automated production systems

Special advantages:

• Smooth running and quiet operation
• High precision and stability

This set offers the ideal solution for demanding control tasks in the field of mechanical engineering and manufacturing technology.
