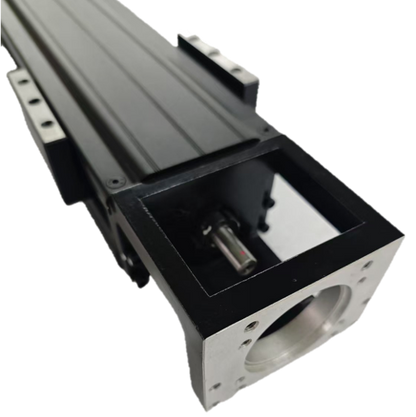

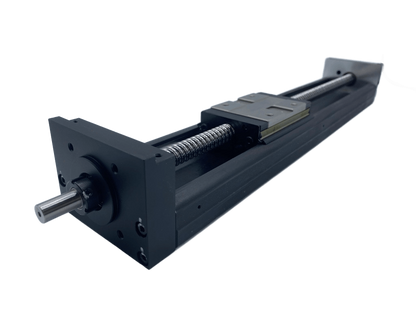

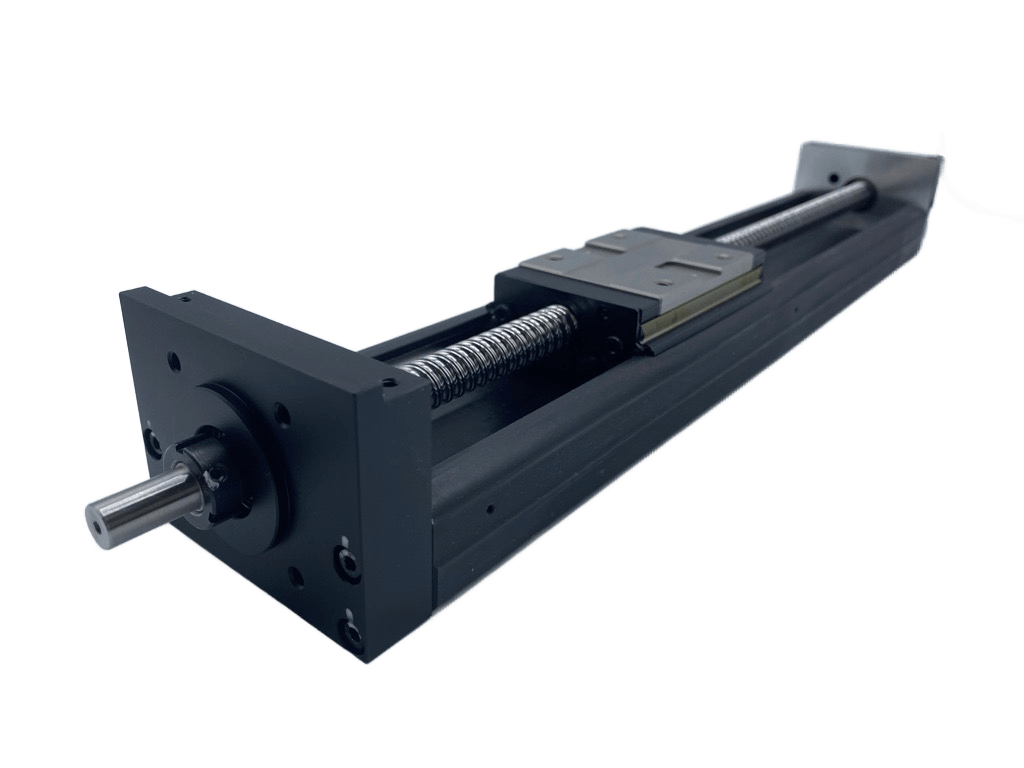

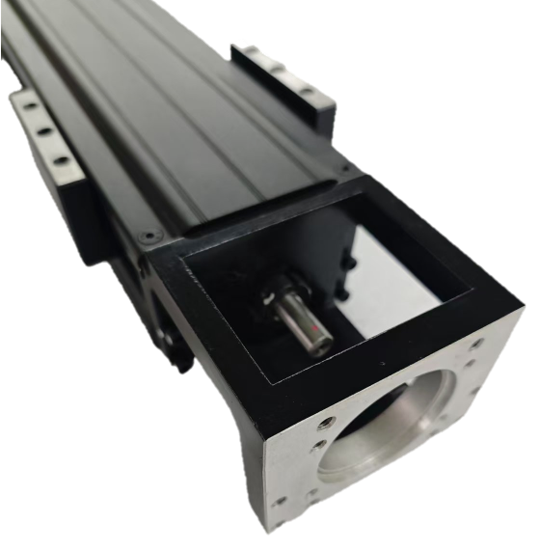

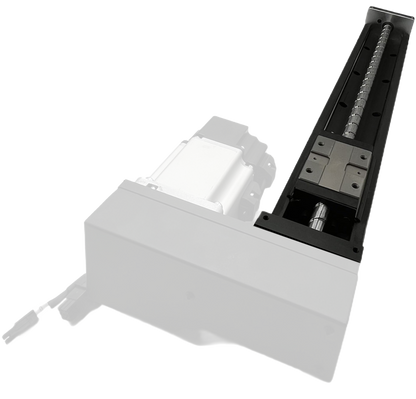

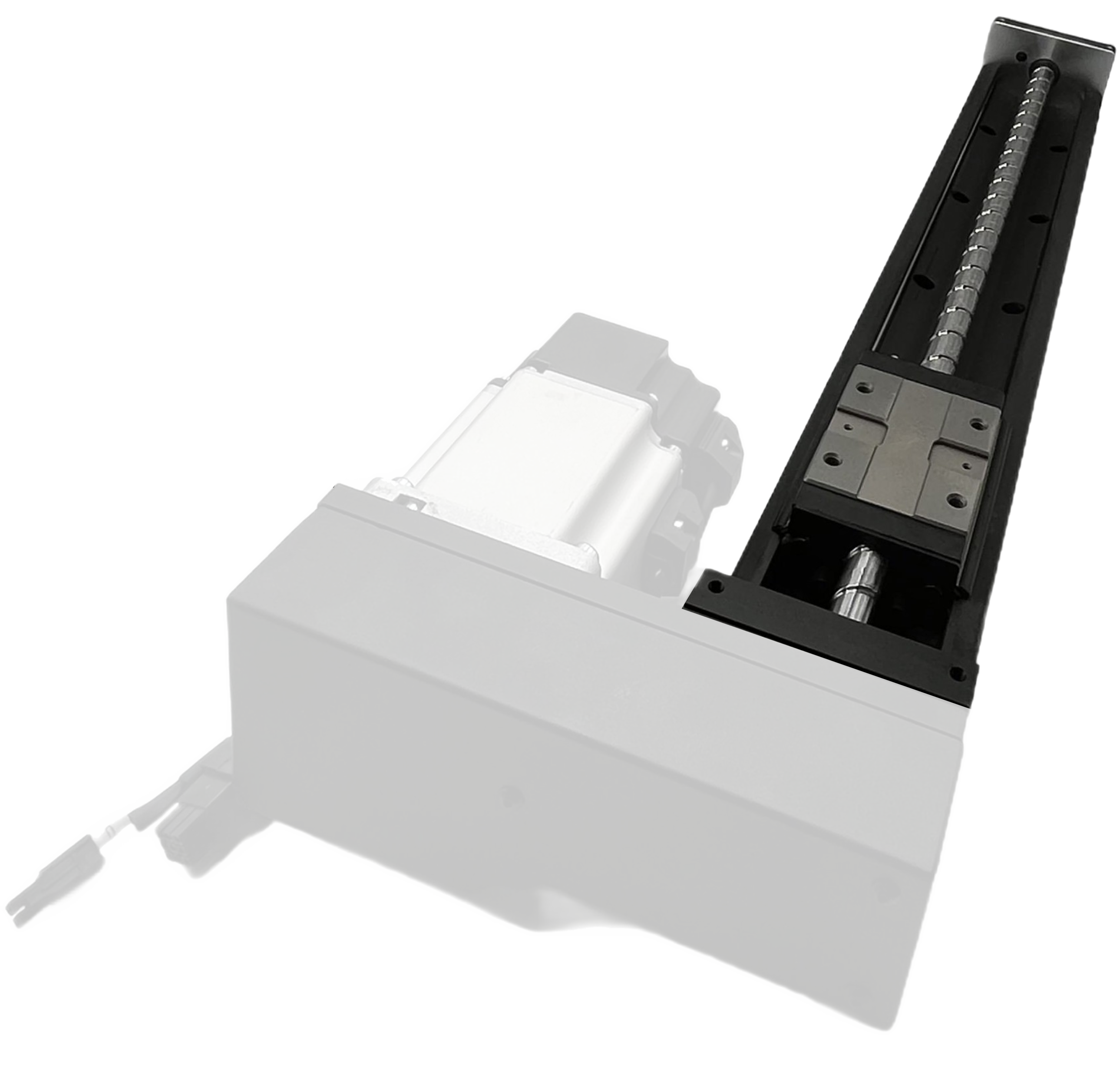

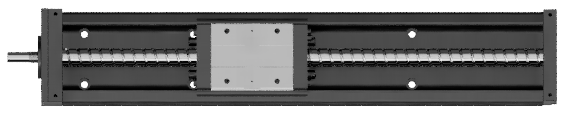

High-precision linear axis with ball screw and U-rail guide

This linear axis combines a high-precision ball screw with a robust U-channel guide and is the ideal solution for demanding applications. It was specifically designed for projects requiring easy installation , high accuracy , and a compact design .

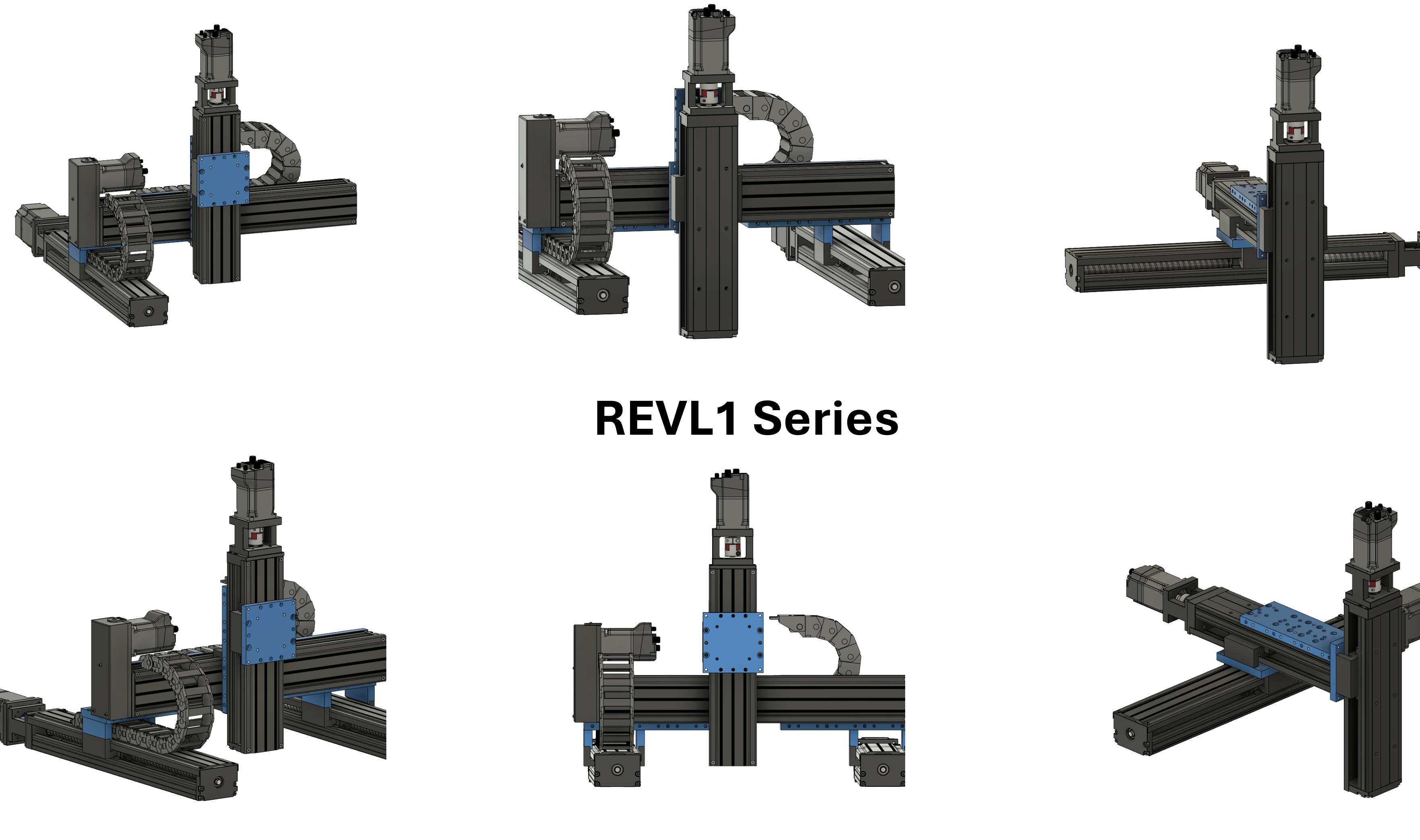

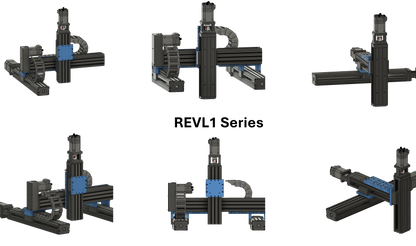

Thanks to its modular design, this axis can be flexibly adapted to different requirements. It also offers exceptionally high rigidity, ensuring precise movements and reliable performance. Perfectly suited for industrial automation, robotics, and many other applications.

Key features:

Precision: High-precision ball screw for maximum accuracy.
Stability: Robust U-rail guide for reliable operation.
Flexibility: Modular design for versatile customization options.
Compact design: Space-saving and easy to integrate.

Discover the ideal solution for your linear motion requirements and benefit from maximum precision and reliability.

GROSS (INCL. VAT)

€139,99

NET (EXCL. VAT)

€117,64

Delivery approx. 2-3 weeks

Technical data

Model Number BF-REVL1-S..		60.05		60.10		86.10		86.20
Accuracy P=Precision, R=Regular		P	R	P	R	P	R	P	R
Ball Screw (mm)		12		12		16		16
Lead (mm)		05		10		10		20
Dynamic Load Rating (N)		3744	3377	2410	2107	7144	6429	4645	4175
Static Load Rating (N)		6243	5625	3743	3234	12642	11387	7655	6889
Dynamic Load Limit (N)	Block A	13230		13230		31458		31458
Dynamic Load Limit (N)	Block S	7173		7173		21051		21051
Static Load Limit (N)	Block A	21462		21462		50764		50764
Static Load Limit (N)	Block S	11574		11574		29475		29475

Models	Lead (mm)	Length (mm)	Speed (mm/sec)
Models	Lead (mm)	Length (mm)	Precision	Regular
REVL1-SP.60 & REVL1-SR.60	5	150	550	390
		200	550	390
		300	550	390
		400	550	390
		500	550	390
		600	340	340
	10	150	1100	790
		200	1100	790
		300	1100	790
		400	1100	790
		500	1100	790
		600	670	670
REVL1-SP.86 & REVL1-SR.86	10	340	740	520
		440	740	520
		540	740	520
		640	740	520
		740	740	520
		940	610	430
	20	340	1480	1050
		440	1480	1050
		540	1480	1050
		640	1480	1050
		740	1480	1050
		940	1220	870

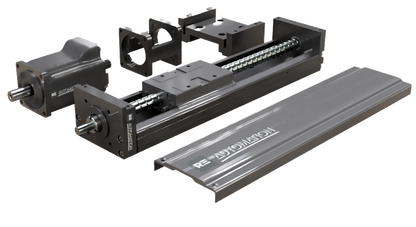

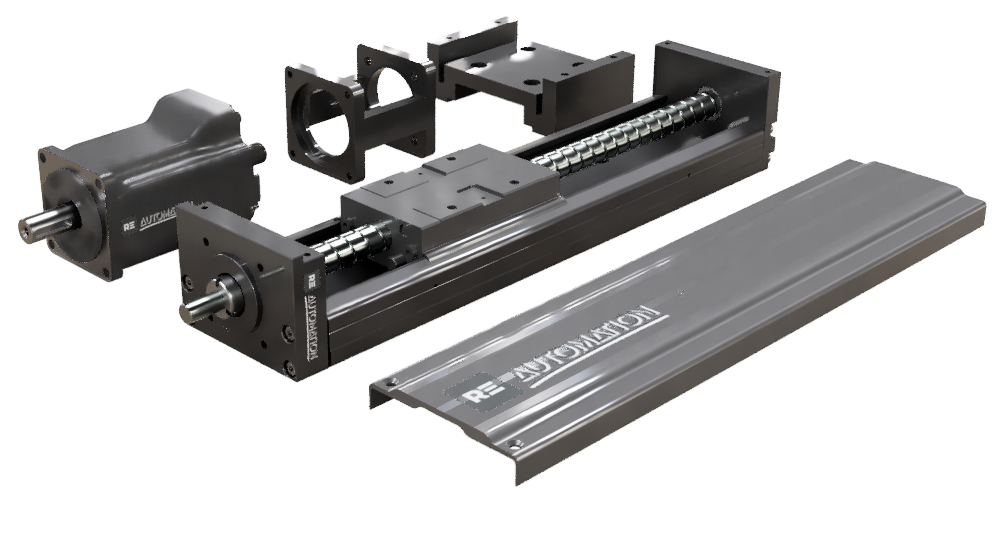

#	Component	#	Component
1	Ball Screw Nut	8	Socket Head Cap Screw DIN912 - M4 x 0.7 x 20
2	Fixed Bearing	9	Inner Washer
3	Rail	10	Ball Bearing
4	Ball Screw	11	Inner Ring
5	Block	12	Outer Washer
6	Floating Bearing	13	Outer Ring
7	Socket Head Cap Screw DIN912 - M4 x 0.7 x 30

REVL1-SP.60 & REVL1-SR.60
Spindle Length	Axis Length	Max. Stroke	G (mm)	K (mm)	n	m	Weight (kg)
150	195	60	25	100	2	2	1.4
200	245	110	50	100	2	2	1.7
300	345	210	50	200	3	2	2.3
400	445	310	50	100	4	4	3.2
500	545	410	50	200	5	3	3.5
600	645	510	50	100	6	6	4.1

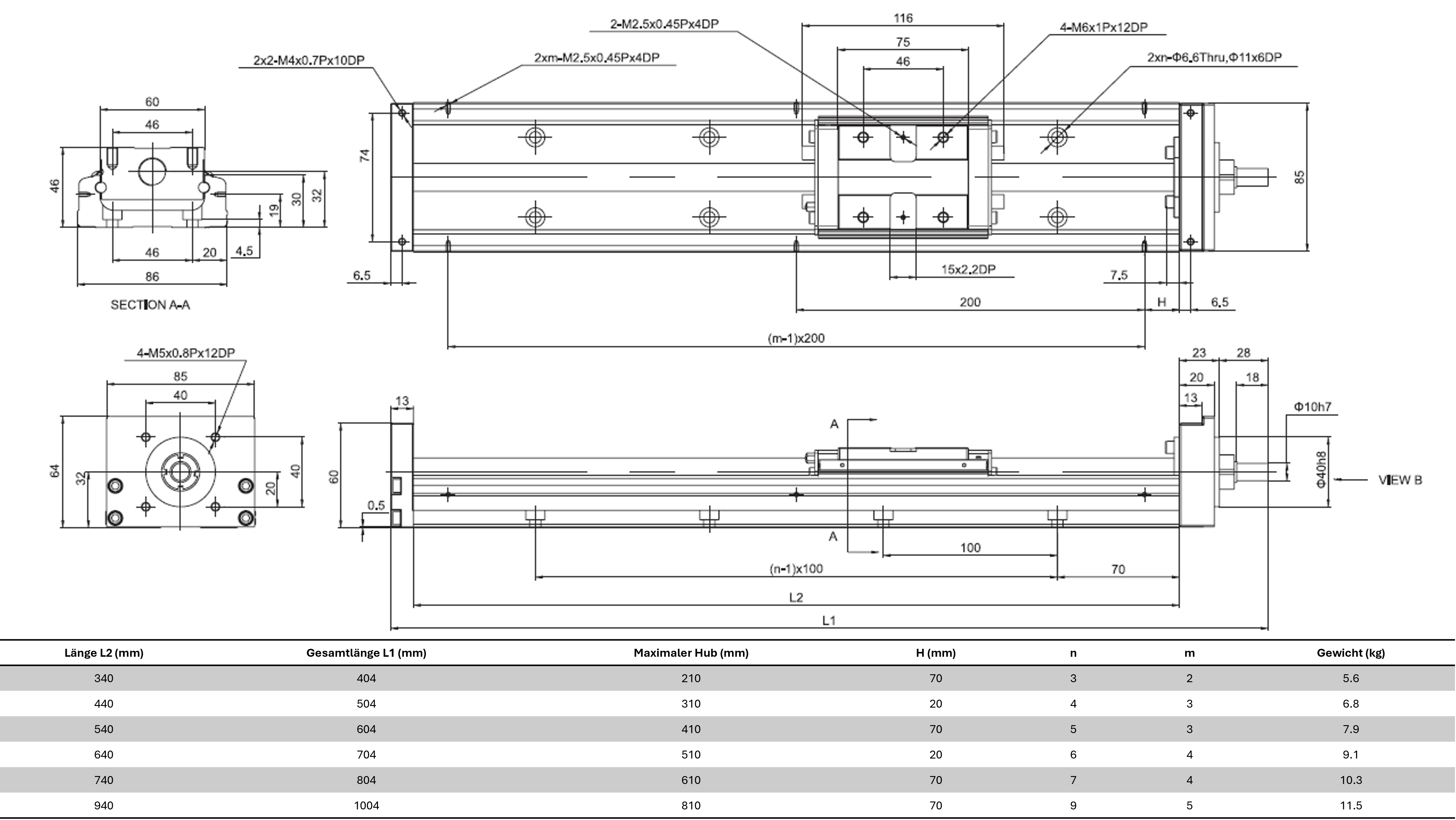

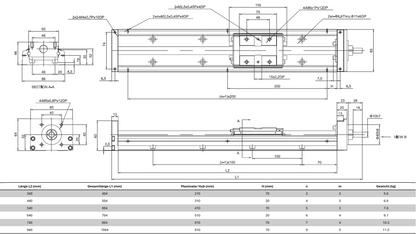

REVL1-SP.86 & REVL1-SR.86
Spindle Length	Axis Length	Max. Stroke	H (mm)	n	m	Weight (kg)
340	440	210	70	3	2	5.7
440	540	310	20	4	3	6.9
540	640	410	70	5	3	8.0
640	740	510	20	6	4	9.2
740	840	610	70	7	4	10.4
940	1040	810	70	9	5	11.6

Model	Length	Repeatability		Accuracy		Guide Parallelism		Breakaway Torque (N/cm)
Model	Length	Precision	Regular	Precision	Regular	Precision	Regular	Precision	Regular
REVL1-SP.60 & REVL1-SR.60	150	±0.003	±0.01	0.020	-	0.010	-	15	7
	200
	300
	400
	500	±0.003	±0.01	0.025	-	0.015	-	15	7
	600	±0.003	±0.01	0.025	-	0.015	-	15	7
REVL1-SP.86 & REVL1-SR.86	340	±0.003	±0.01	0.025	-	0.015	-	15	10
	440
	540
	640
	740	±0.003	±0.01	0.030	-	0.020	-	17	10
	940	±0.003	±0.01	0.040	-	0.030	-	25	10

Are you looking for more versions?

No problem! We'll gladly help you select the right components for your project.
