Automation components

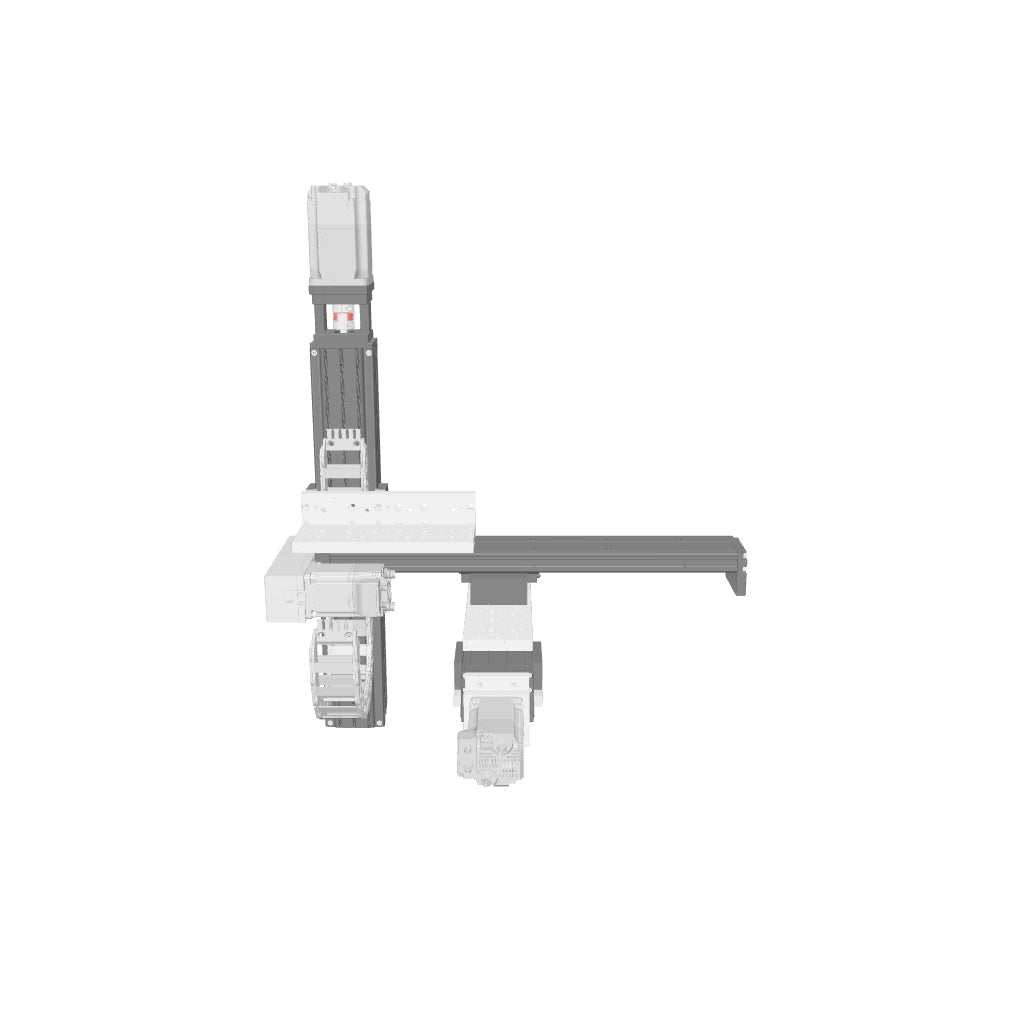

Multi-axis system consisting of REVL1 linear axes & INTEGMOT motors

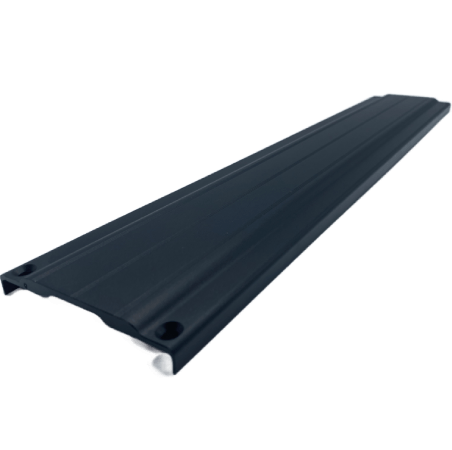

Cover Series RECO V1

• Aluminum cover for linear rails – Stable protection of the highest quality
• This high-quality aluminum cover reliably protects linear axes from
• Dust, dirt, and mechanical impacts. With its high rigidity, it offers
• Maximum stability and extends the lifespan of the rail. Lightweight.

Connection plate for REVL1-XX.60

• Support block variant B for 60mm axles. Higher profile than version A, with
• M6 thread and chamfered top. Aluminum 7075, glass bead blasted and
• Anodized. 50 × 45 × 35.5 mm, approx. 67 g.

Multi-Connector 60 for REVL1-XX.60

• Central connecting element for 60mm linear axes. Accommodates up to two axes.
• parallel and connects them via dowel pins (Ø5H7, Ø6H7) and M5 threads
• Precisely positioned. Aluminum 7075, glass bead blasted and anodized. 160 × 60 × 15 mm
• approx. 249 g.

Connecting plate for REVL1-XX.86 Crossplate

• Cross plate for a 90° connection of two 86mm axles. Large hole pattern with 6 x Ø6
• H7 dowel pin holes, 8× M6 through threads (40 mm) and 8× M5 threads.
• Aluminum 7075, glass bead blasted and anodized. 112 × 112 × 15 mm, approx. 458 g.

Connecting plate for REVL1-XX.86 spacer

• Steel spacer for 86mm axle configurations. Bridges the gap.
• between crossplate and axle, with 3× Ø6 H7 locating holes for precise alignment
• Positioning. Steel, glass bead blasted and anodized. 75 × 35 × 30 mm, approx.
• 258 g.

Connection plate for REVL1-XX.86 Support

• Support block for 86mm axles. Compact block with beveled top and
• M6 thread. Aluminum 7075, glass bead blasted and anodized. 62 × 32 × 40 mm
• approx. 76 g.

Multi-Connector 86 for REVL1-XX.86

• Brief description (overview page): Central connecting element for
• 86mm linear axes. Accommodates up to two axes in parallel, with
• Dowel pin holes (Ø6H7, Ø8H7) and M6 threads for higher loads. Aluminum
• 7075, glass bead blasted and anodized. 240 × 86 × 20 mm, approx. 772 g.

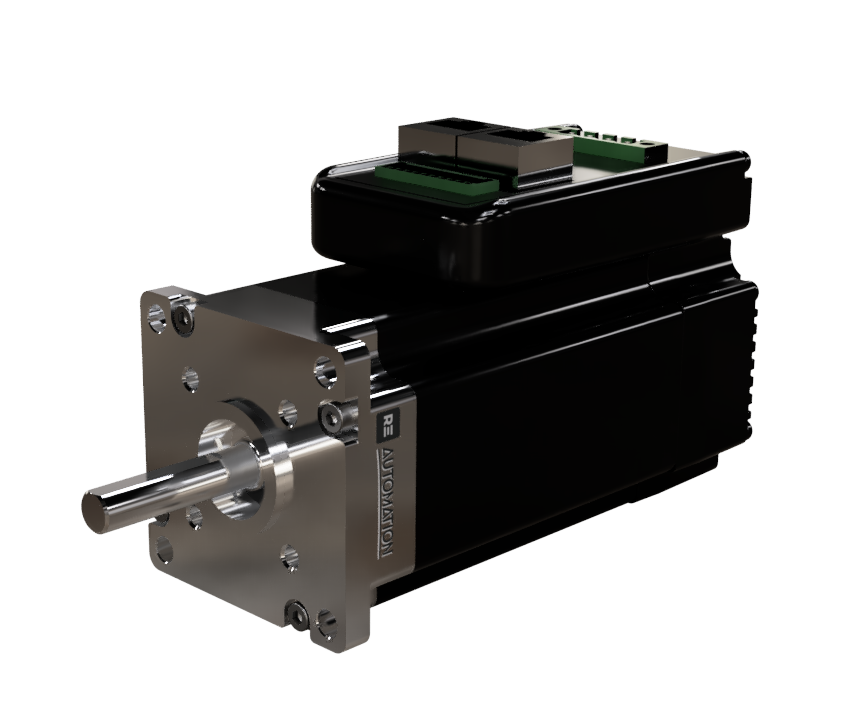

Integrated EtherCat servo motor (40mm [Nema23] / 180W)

• Compact all-in-one servo motor with EtherCAT – powerful & precise
• The IHSV57-30-18-36-EC is an integrated servo motor in Nema23 format with
• 180 W power and EtherCAT communication – ideal for use in modern applications
• Automation systems.

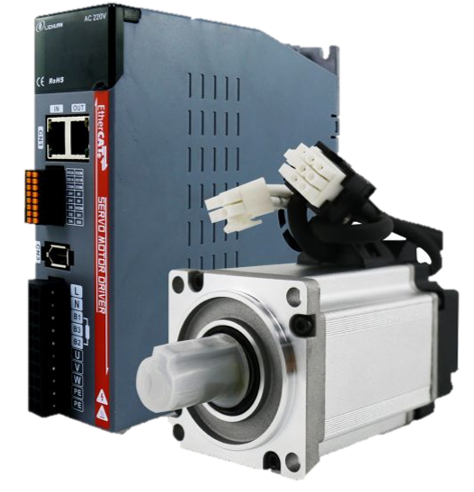

EtherCat servo motor (80 mm / 1000W)

• Power: 1000W
• Speed: 2500 rpm
• Torque: 4.0 Nm

EtherCat servo motor (60mm / 600W)

• Power: 600W
• Speed: 3000 rpm
• Torque: 1.91Nm
