Connection plate for REVL1-XX.86 Support

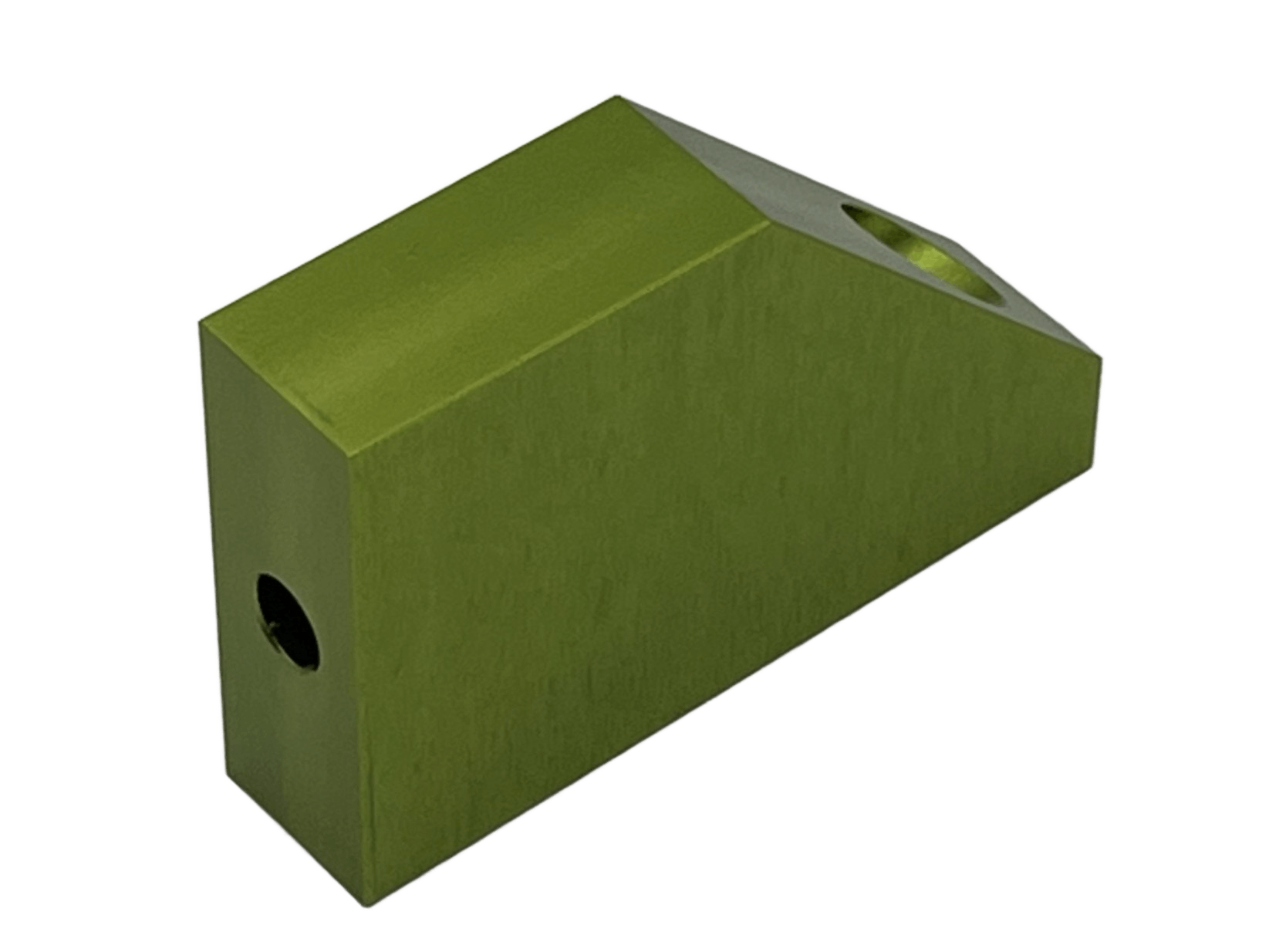

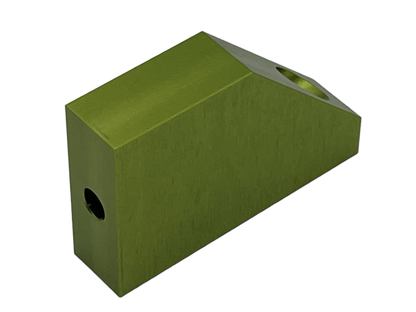

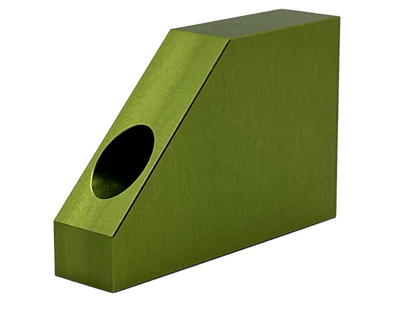

The Support Plate 86 A is a support block for 86mm linear axes. It serves as a support point or end bearing where the axis needs to be raised to a defined height.

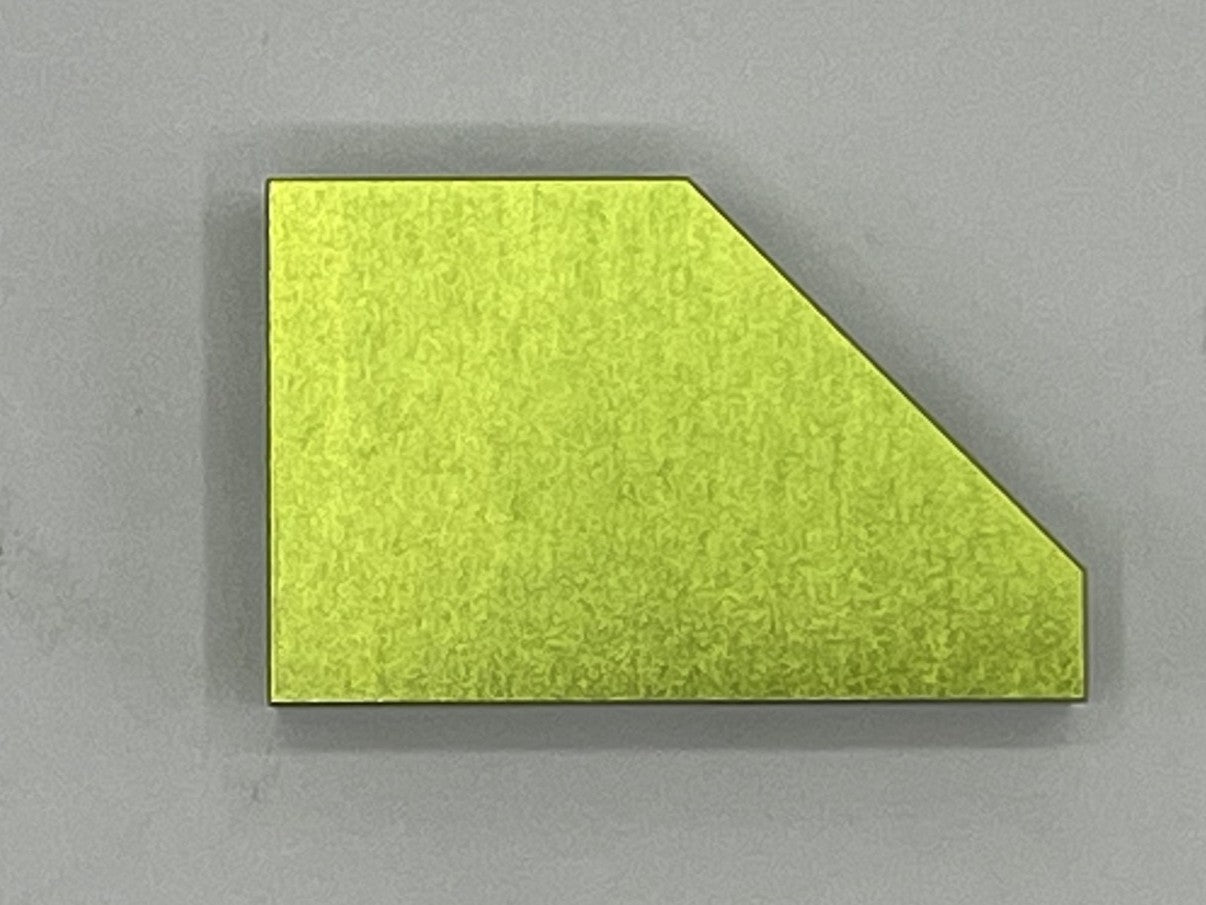

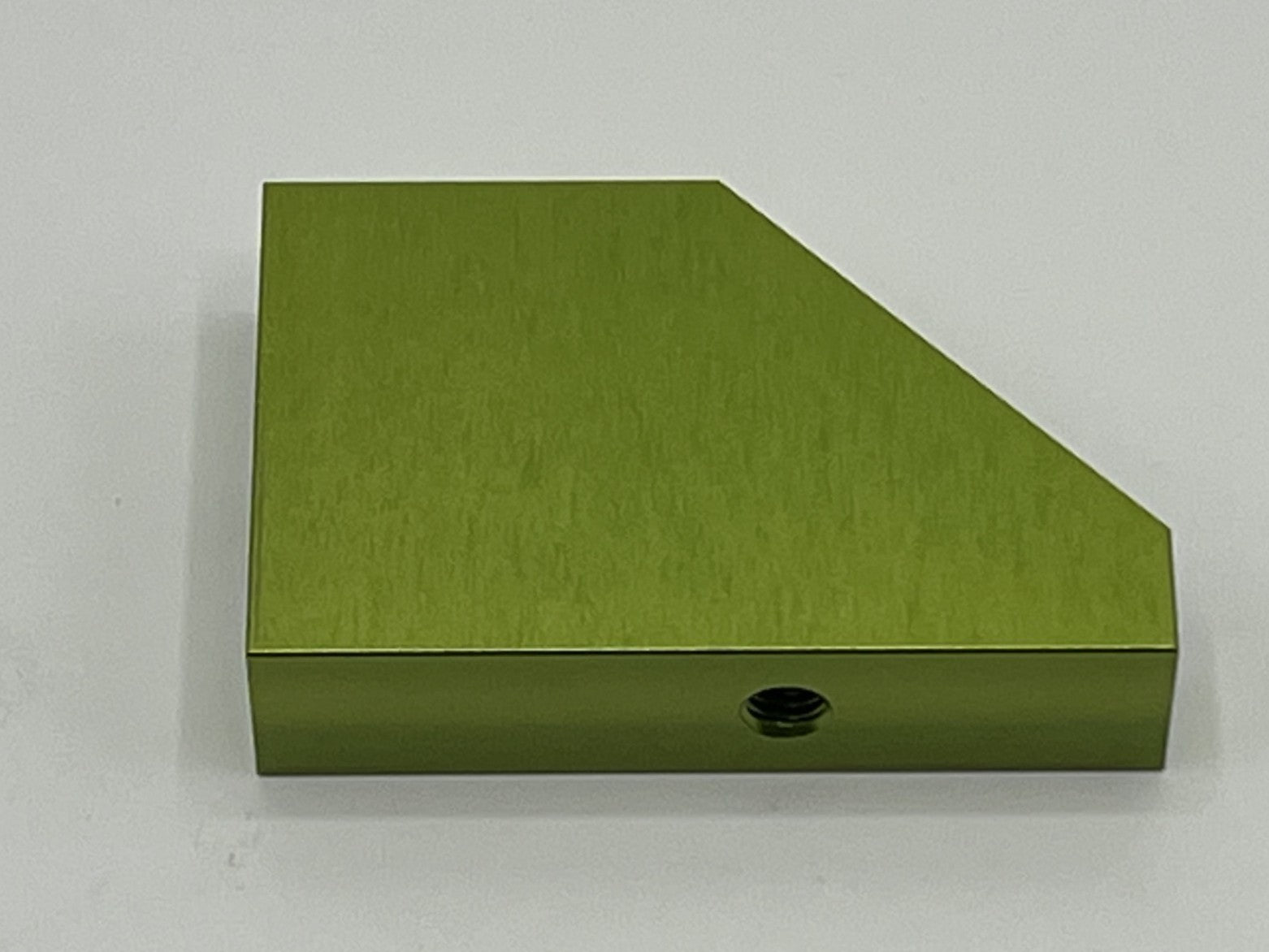

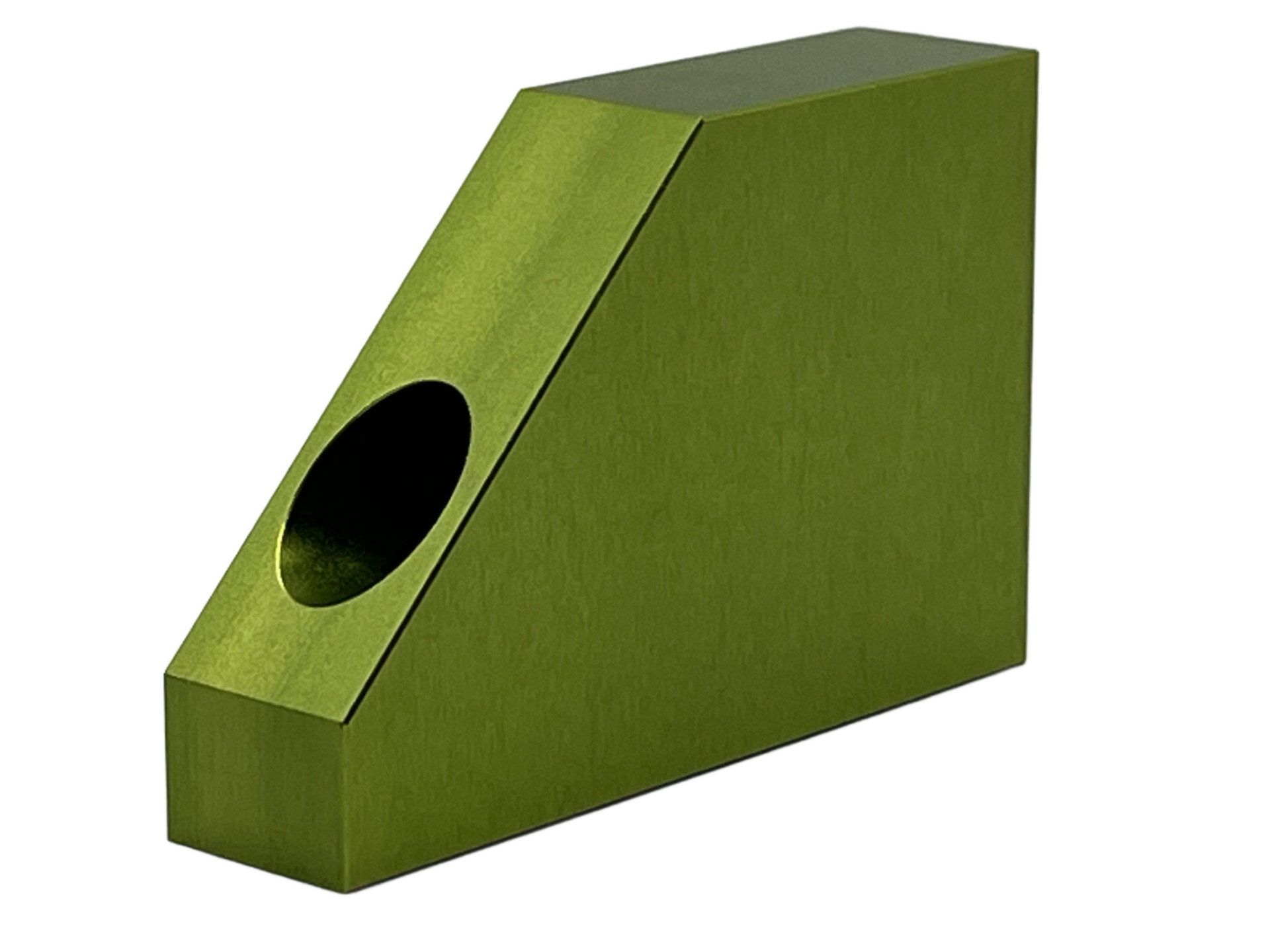

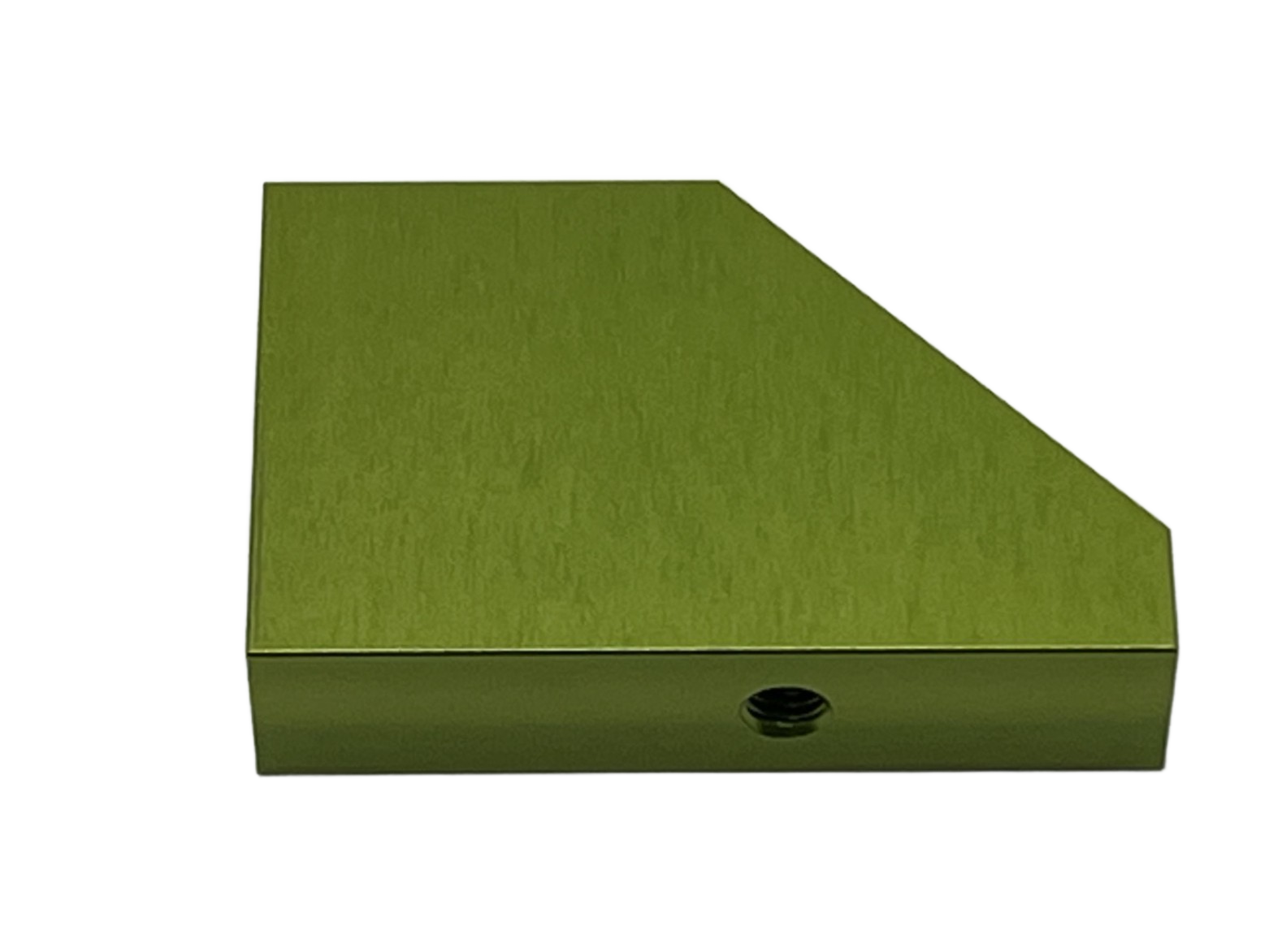

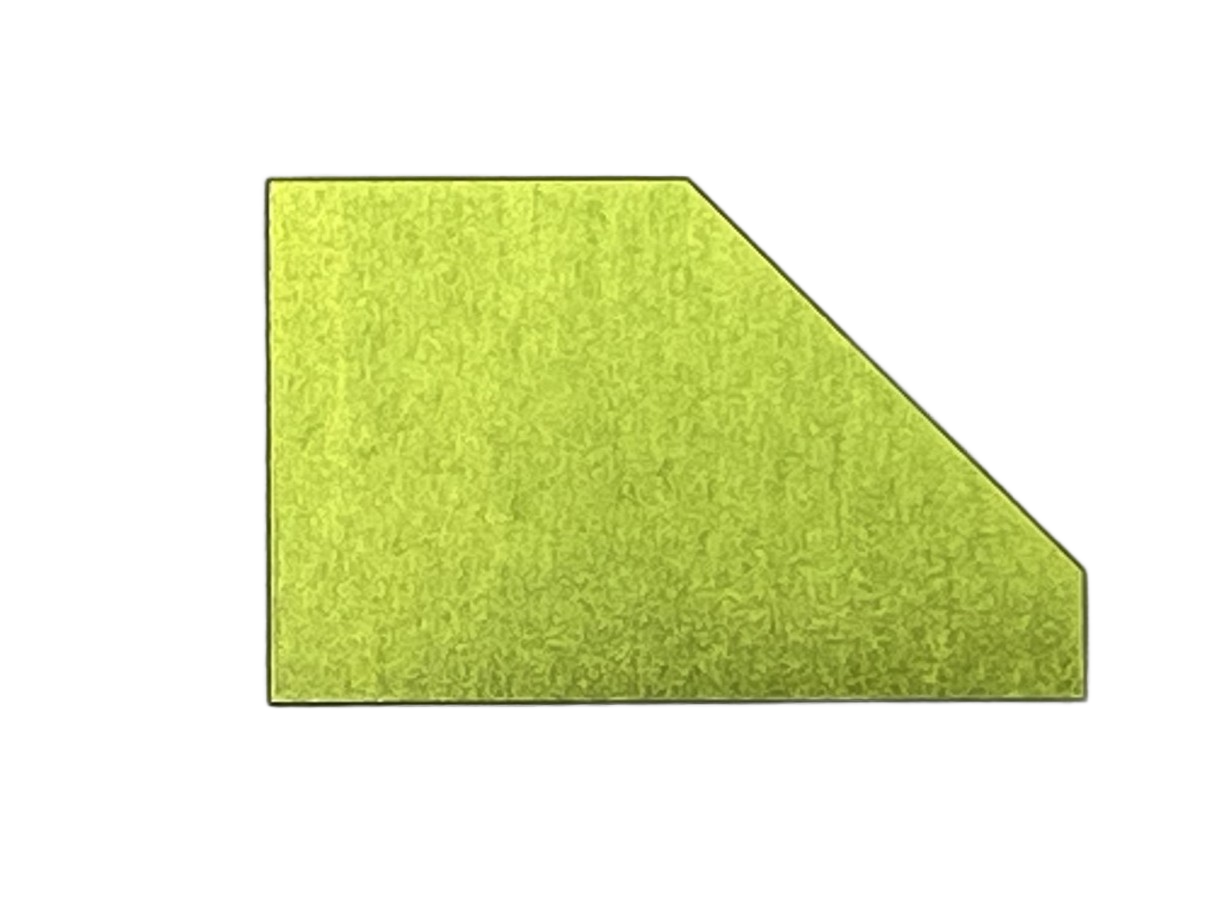

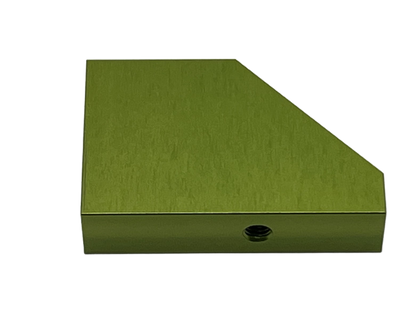

The beveled top surface allows for space-saving installation. An M6 thread (15 mm deep) securely fixes the block to the substructure.

Made from 7075 aluminum, glass bead blasted and anodized.

Technical data:

• Item number: COEL-86.000.030
• Dimensions: 62 × 32 × 40 mm
• Weight: approx. 76 g
• Material: Aluminium 7075
• Surface: Glass bead blasted & anodized
• Tolerances: DIN ISO 2768-m
• Thread: 1× M6 (15 mm)
• STEP file available
