Integrated EtherCat servo motor (40mm [Nema23] / 180W)

Integrierter EtherCat Servomotor (40mm [Nema23] / 180W) - RE Automation

Downloads

Manual (PDF) soon

CAD data (STEP) soon

Drawing (PDF) soon

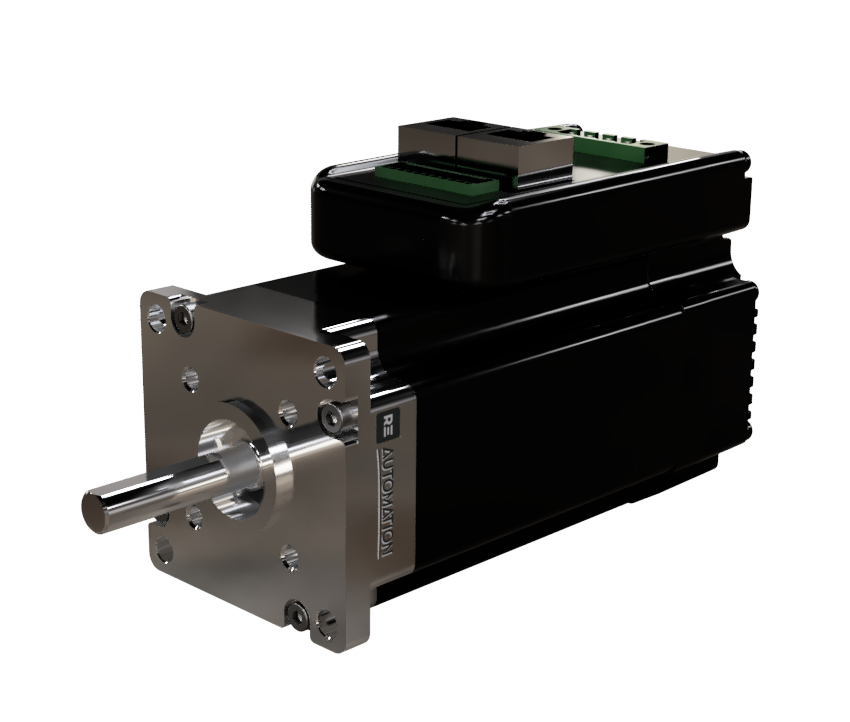

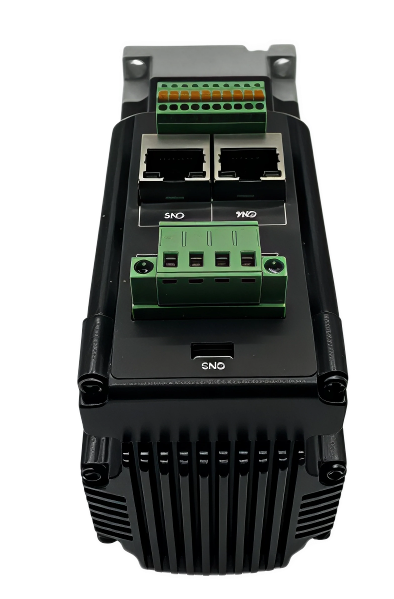

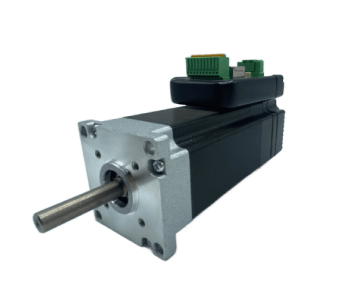

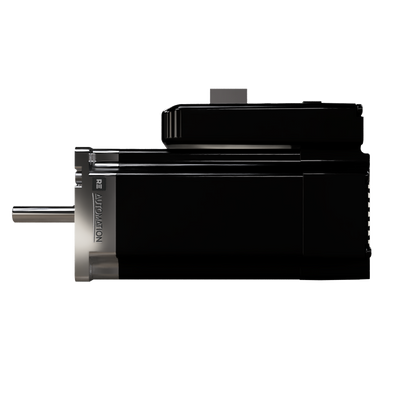

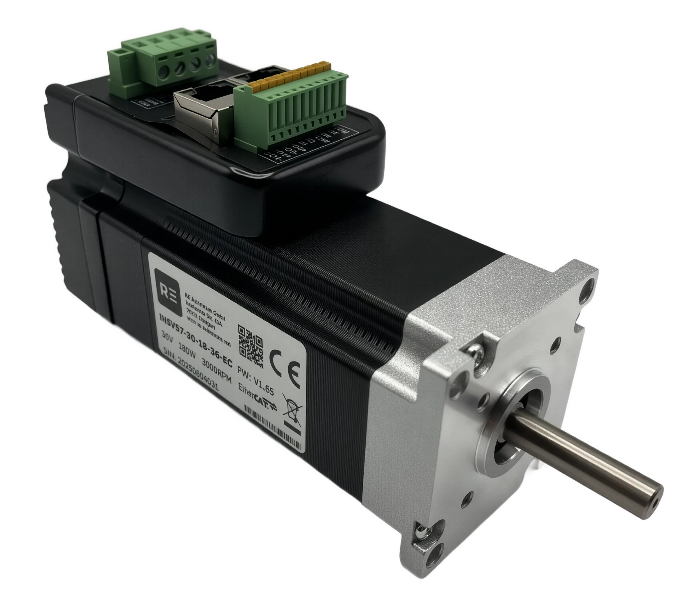

The IHSV.57.30.18.36.EtherCAT combines servo motor and driver in a single, space-saving housing. This all-in-one solution is ideal for CNC machines, automation systems, and other applications where precision and reliability are essential.

Key features:

Integrated driver: Reduces wiring effort and saves space in the control cabinet.
Closed-loop control: Ensures precise positioning without step loss.
High efficiency: Low heat generation and low-vibration operation.
Easy setup: Pre-configured for a quick start, with optional fine-tuning via RS232 or CoE objects
Versatile applications: Ideal for CNC milling machines, 3D printers, pick-and-place systems, milling machines, robots or various spindle drives.

Technical highlights:

Torque ranges: From 0.3 Nm to 2.1 Nm, depending on the model.
Speeds: Up to 3000 rpm.
Power supply: 24–50 V DC.
Control signals: EtherCAT

With the IHSV57.30.18.36.EtherCAT , you get a reliable and economical solution for your drive requirements. Its compact design and easy integration make these servo motors the first choice for modern automation projects.

GROSS (INCL. VAT)

€269,99

NET (EXCL. VAT)

€226,88

In stock – ships today

Technical data

Parameter	Unit	INTEGMOT.57.30.18.36.EtherCAT	INTEGMOT.57.30.14.36.EtherCAT
Rated Power	W	180	140
Rated Torque	N·m	0.57	0.44
Rated Speed	min^-1	3000	3000
Peak Torque	N·m	1.71	1.32
Maximum Speed (No-load)	min^-1	4200	4200
Encoder Resolution	PPR	1000	1000
Rated Voltage	V	36	36
Rated Current	A	7.5	5.4
Weight	kg	1.6	1.3

Parameter	Min	Typical	Max	Unit
Input Voltage	20	36	50	VDC
Communication Type	EtherCAT Protocol
Maximum Communication Distance	100 m
Maximum Supported Slave Stations	65535
Overload Protection	I²t Limit Load Integral 300% 3 sec.
Sync Cycle Time	250 µs
Operating Temperature	0	—	70	°C
Storage Temperature	-20	—	80	°C
Humidity	40	—	90	% RH
CE Certification	Yes

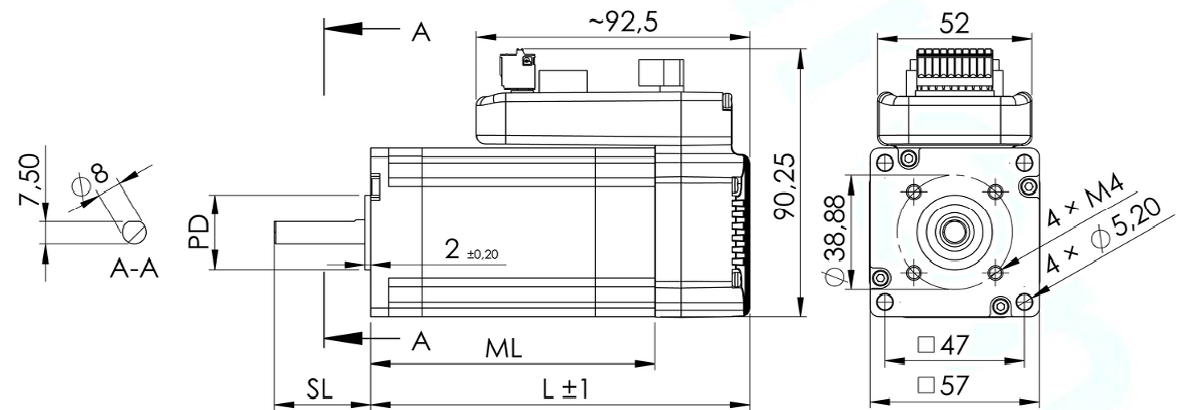

Model	Motor Length ML	Total Length L	Shaft Length SL	Centering Diameter PD
INTEGMOT.57.30.14.36.EtherCAT	96 mm	128 mm	33 ± 0.5 mm	25.4 mm
INTEGMOT.57.30.18.36.EtherCAT	116 mm	148 mm	33 ± 0.5 mm	25.4 mm

Are you looking for more versions?

No problem! We'll gladly help you select the right components for your project.

make contact
