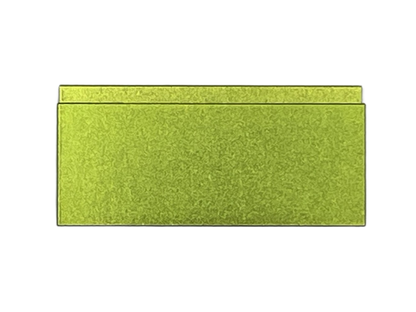

Connecting plate for REVL1-XX.86 spacer

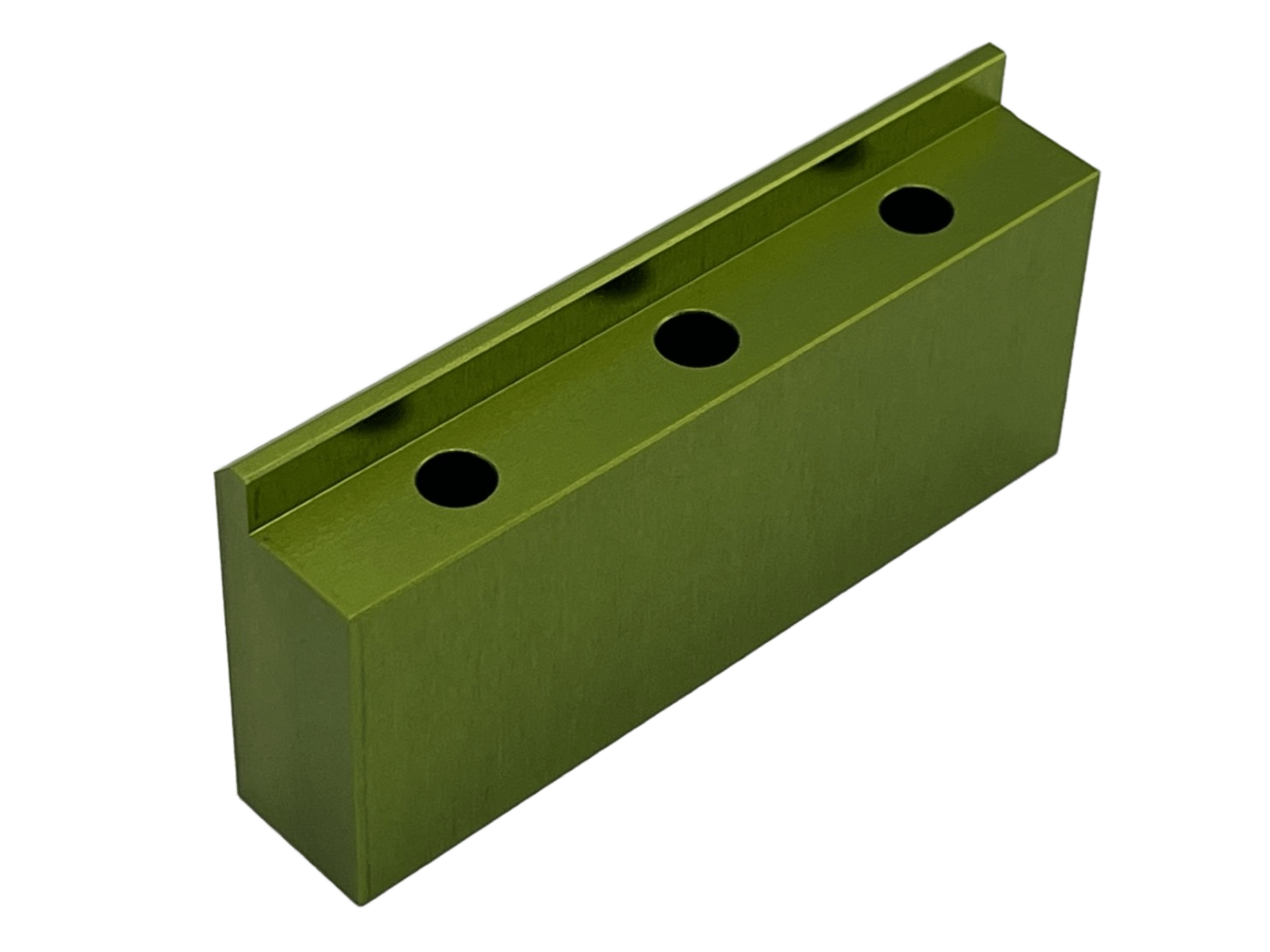

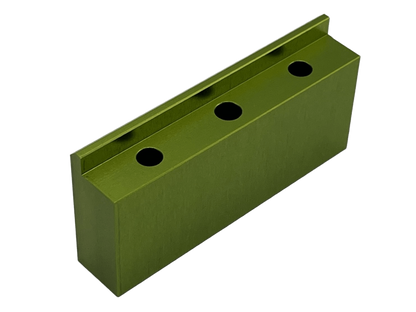

The Spacer 86 is a steel spacer used in the COEL-86 system to bridge the height difference between the crossplate and the linear axis. It is used when two axes on different planes need to be connected – typically with Z-axes in gantry gantries.

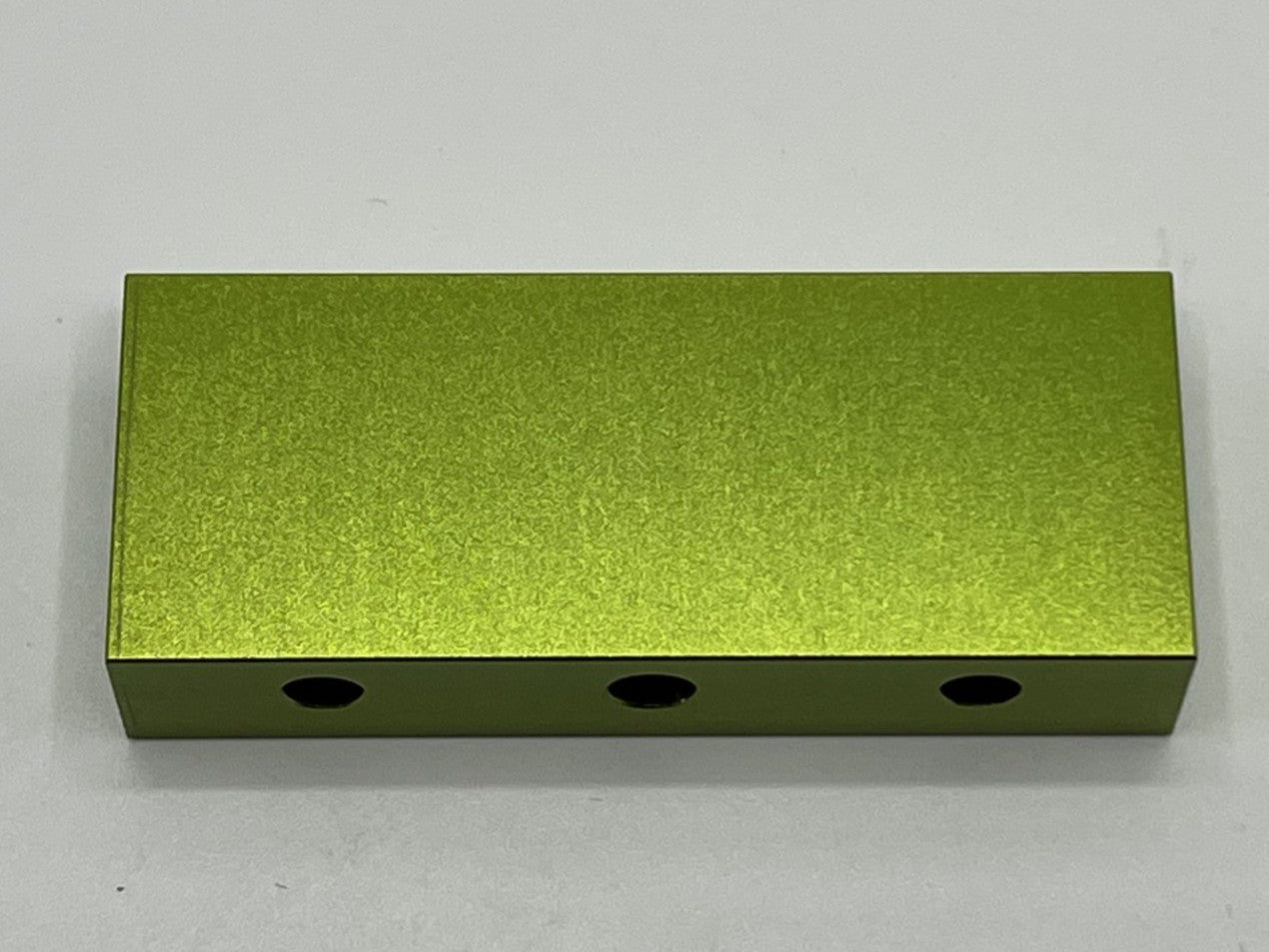

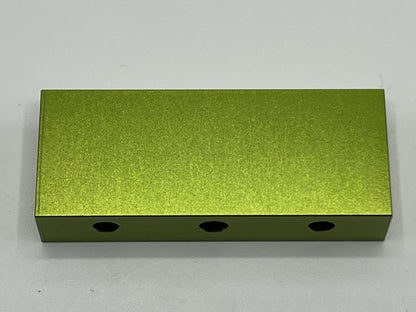

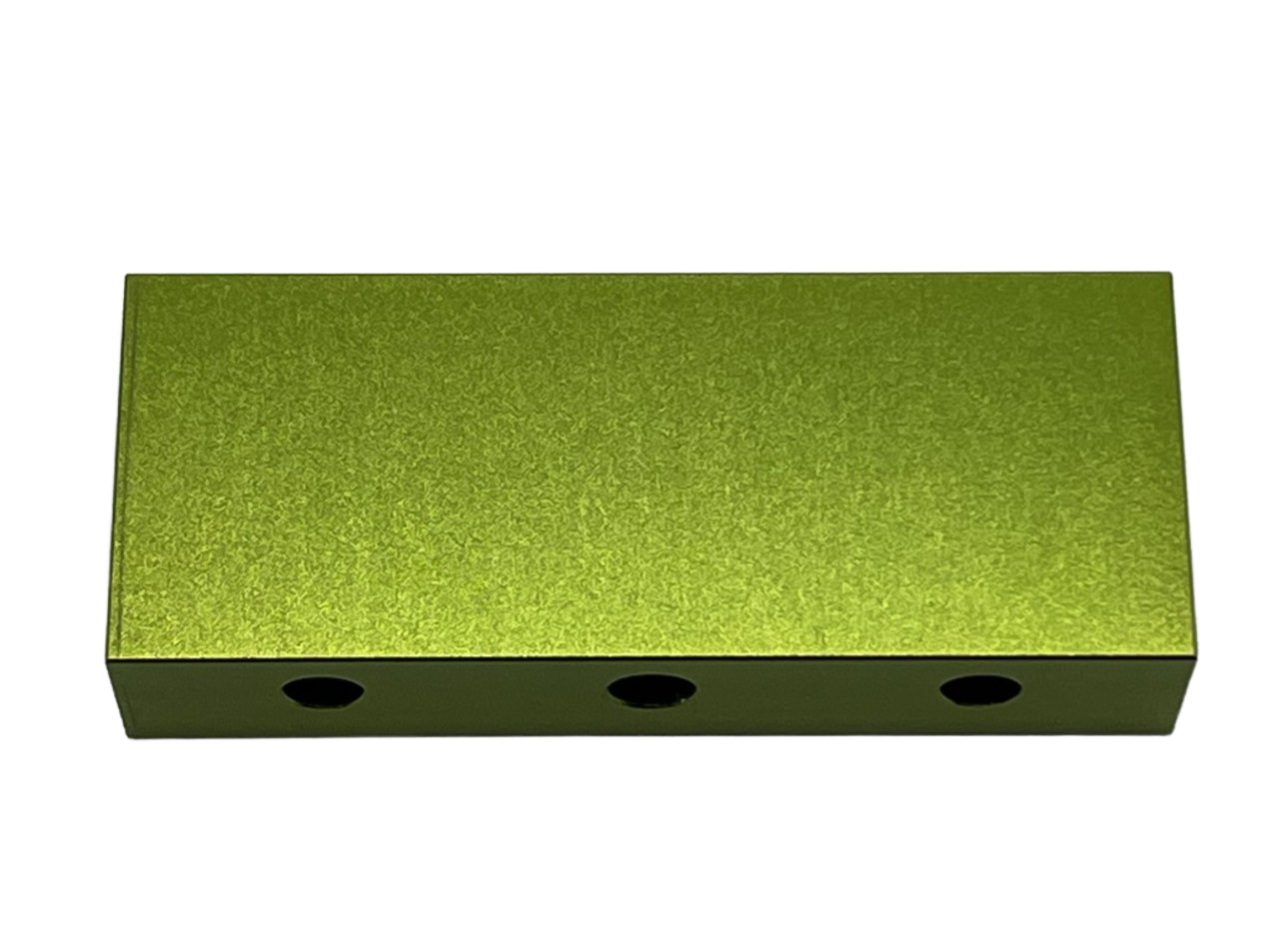

The three 6 H7 diameter holes ensure proper positioning relative to the crossplate. The use of steel (instead of aluminum) provides the spacer with greater stiffness and load-bearing capacity at this critical load transfer point.

Glass bead blasted and anodized, matching the COEL design system.

Technical data:

• Item number: COEL-86.000.050
• Dimensions: 75 × 35 × 30 mm
• Weight: approx. 258 g
• Material: Steel
• Surface: Glass bead blasted & anodized
• Tolerances: DIN ISO 2768-m
• Fitting holes: 3× Ø6 H7
• STEP file available
