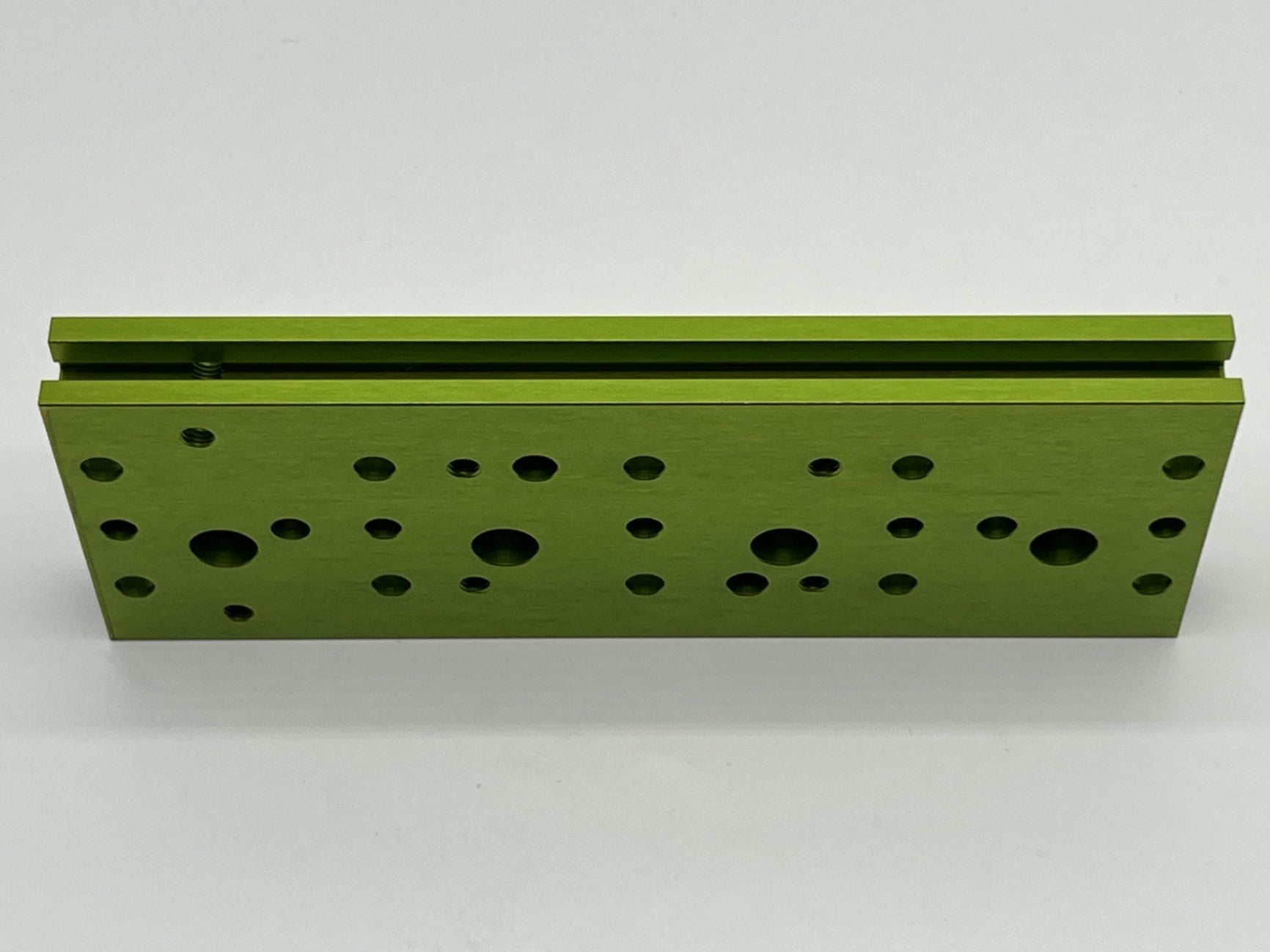

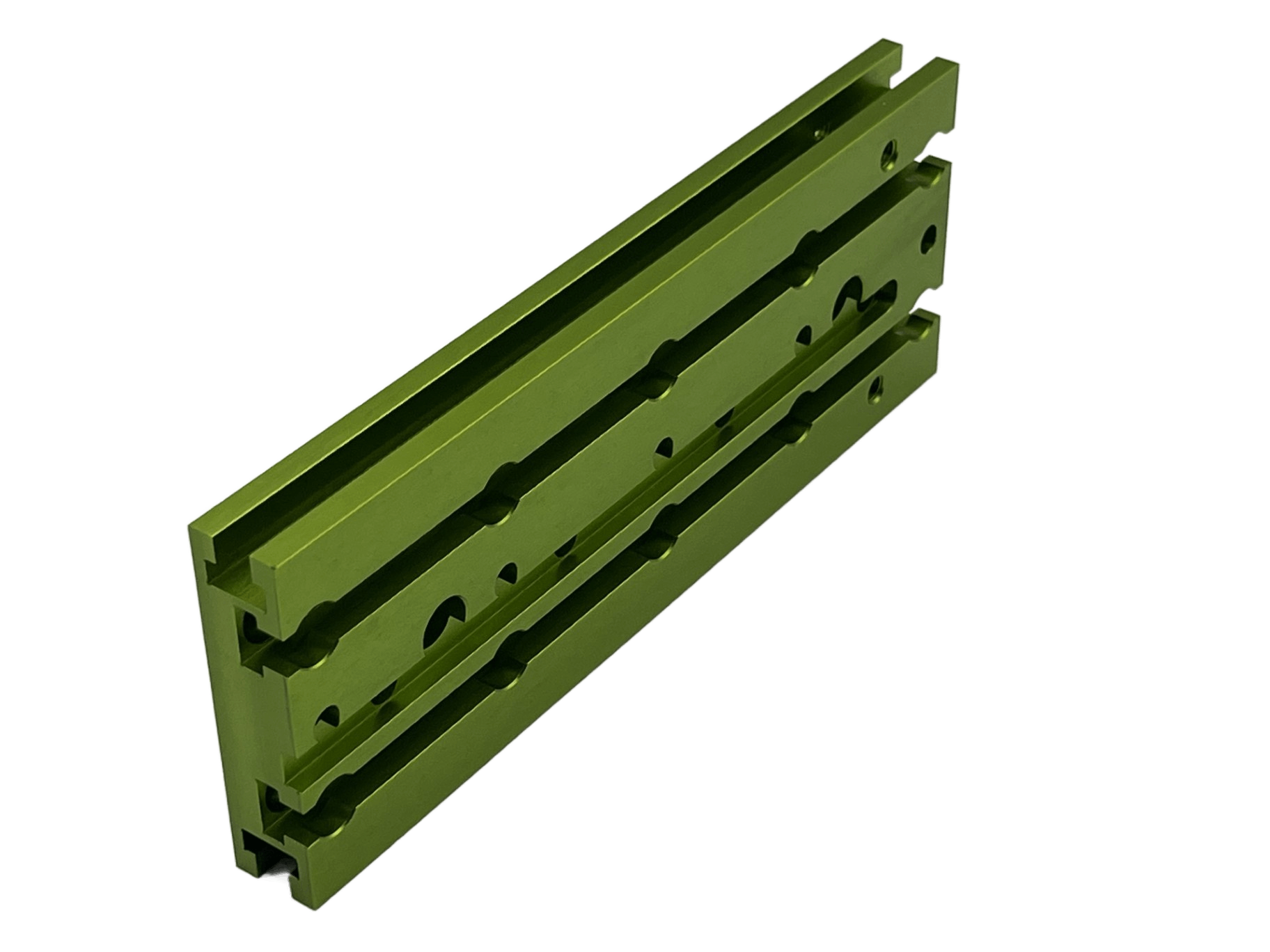

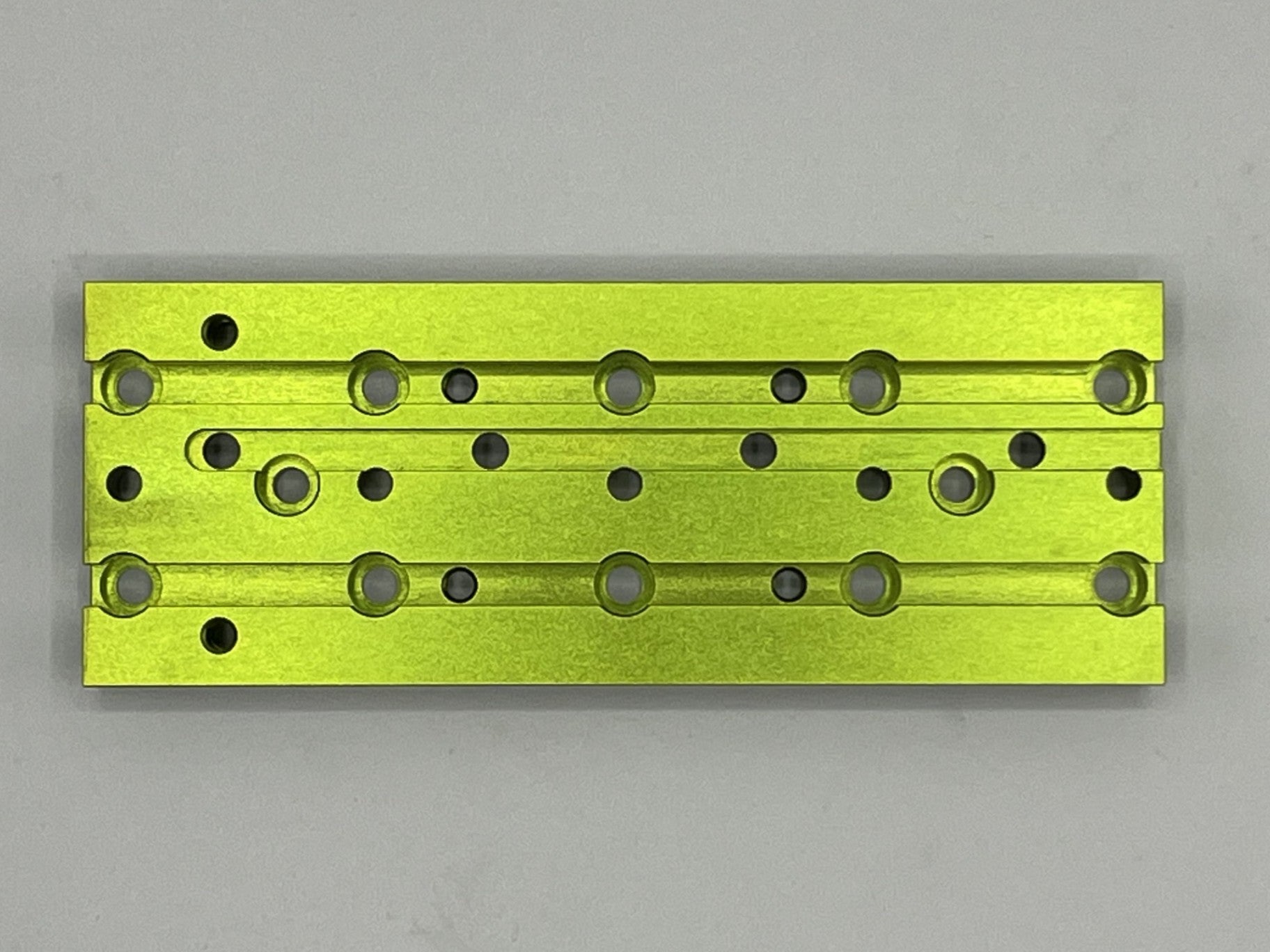

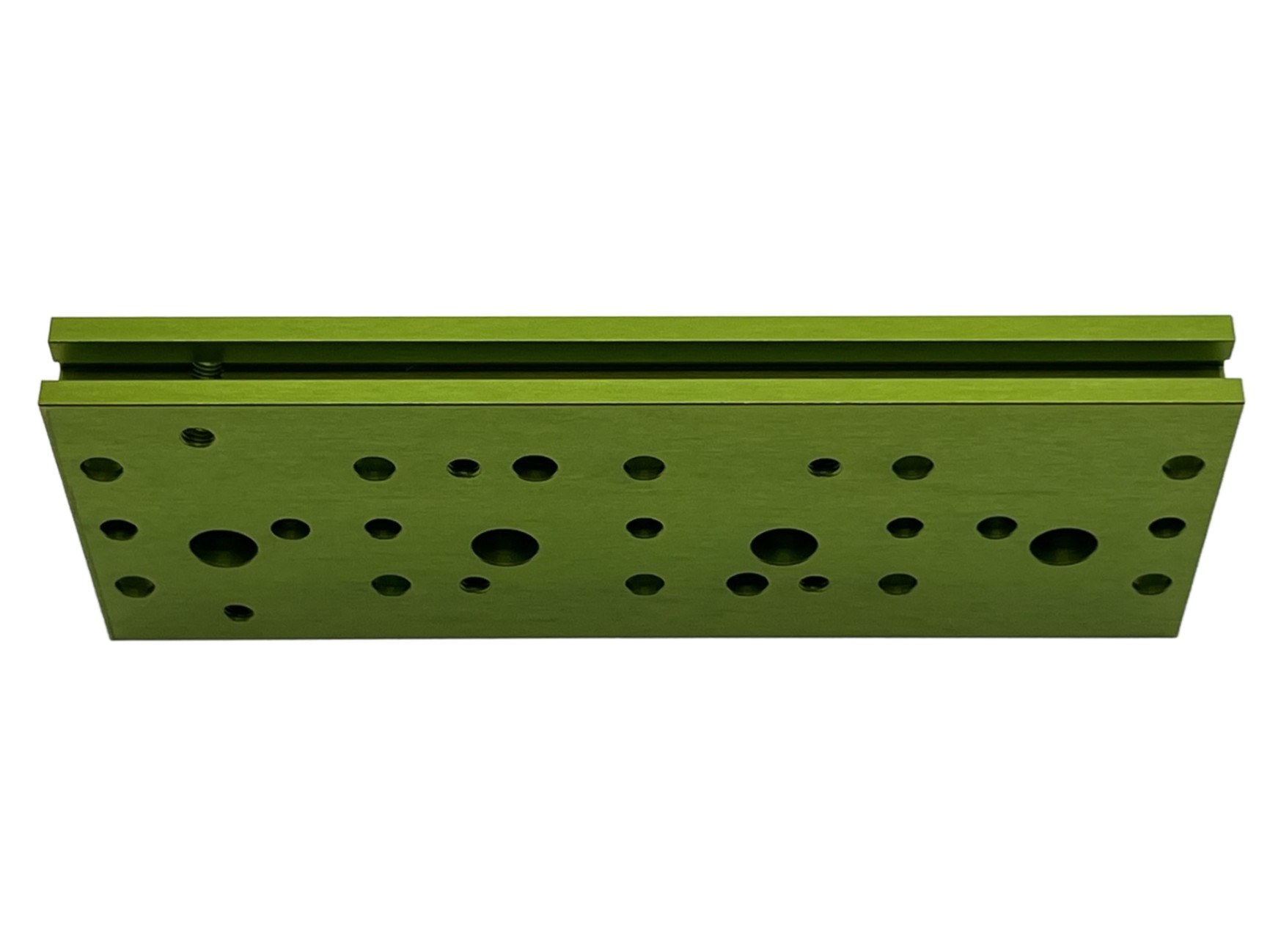

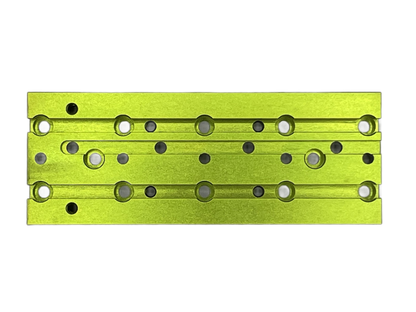

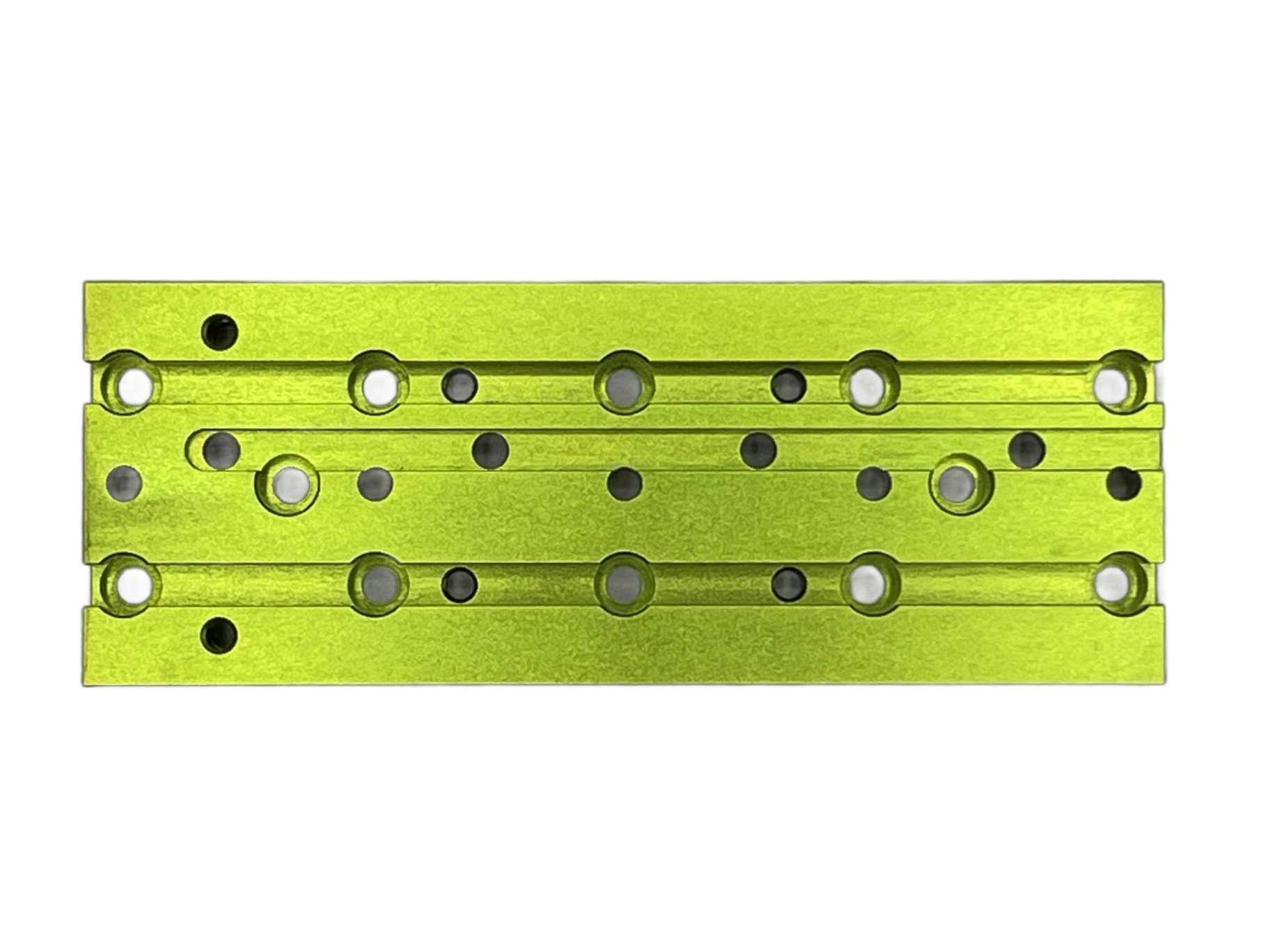

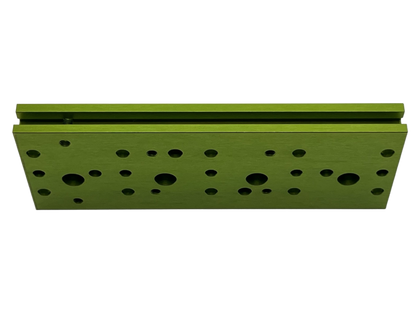

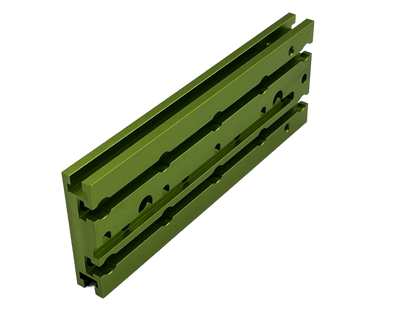

Multi-Connector 60 for REVL1-XX.60

The Multi-Connector 60 is the core component of the COEL-60 connection system. It serves as a central mounting platform for precisely connecting 60mm linear axes – for example, when building multi-axis systems or gantry configurations.

The dowel pin holes with H7 tolerance (Ø5 and Ø6) ensure precise positioning without time-consuming alignment. Multiple M5 threaded holes at varying depths (10, 12, and 25 mm) offer flexible mounting options depending on the installation situation.

Made from 7075 aluminum, glass bead blasted and anodized. This makes the component corrosion-resistant and visually consistent within the RE Automation design system.

Technical data:

• Item number: COEL-60.000.010
• Dimensions: 160 × 60 × 15 mm
• Weight: approx. 249 g
• Material: Aluminium 7075
• Surface: Glass bead blasted & anodized
• Tolerances: DIN ISO 2768-m
• Fitting holes: 4× Ø5 H7, 2× Ø6 H7
• Threads: 4× M5 (10 mm), 2× M5 (12 mm), 2× M5 (25 mm)
• STEP file available
