Connection plate for REVL1-XX.60

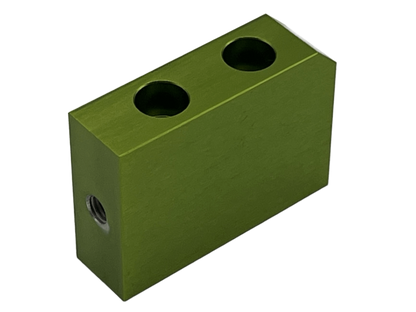

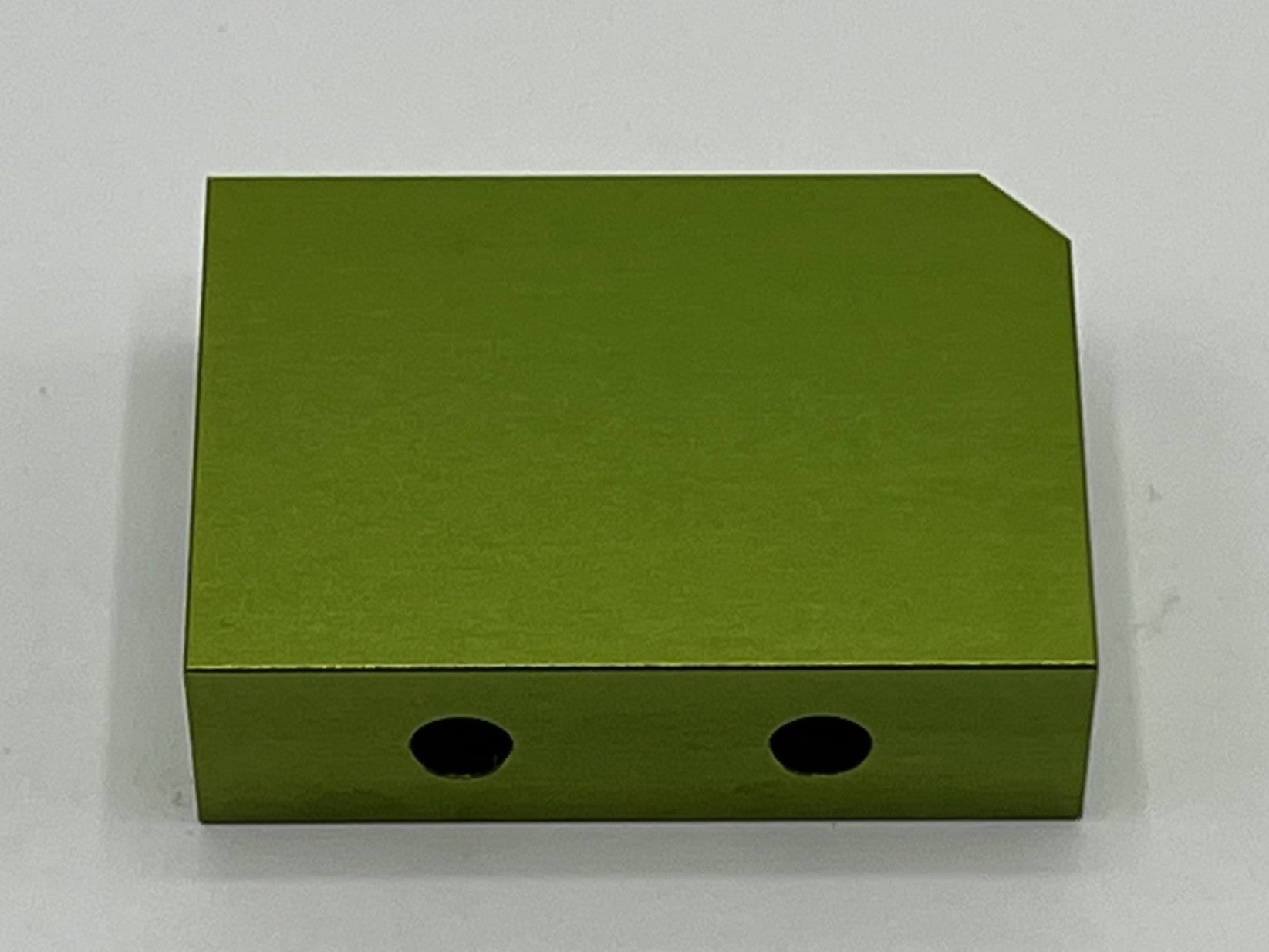

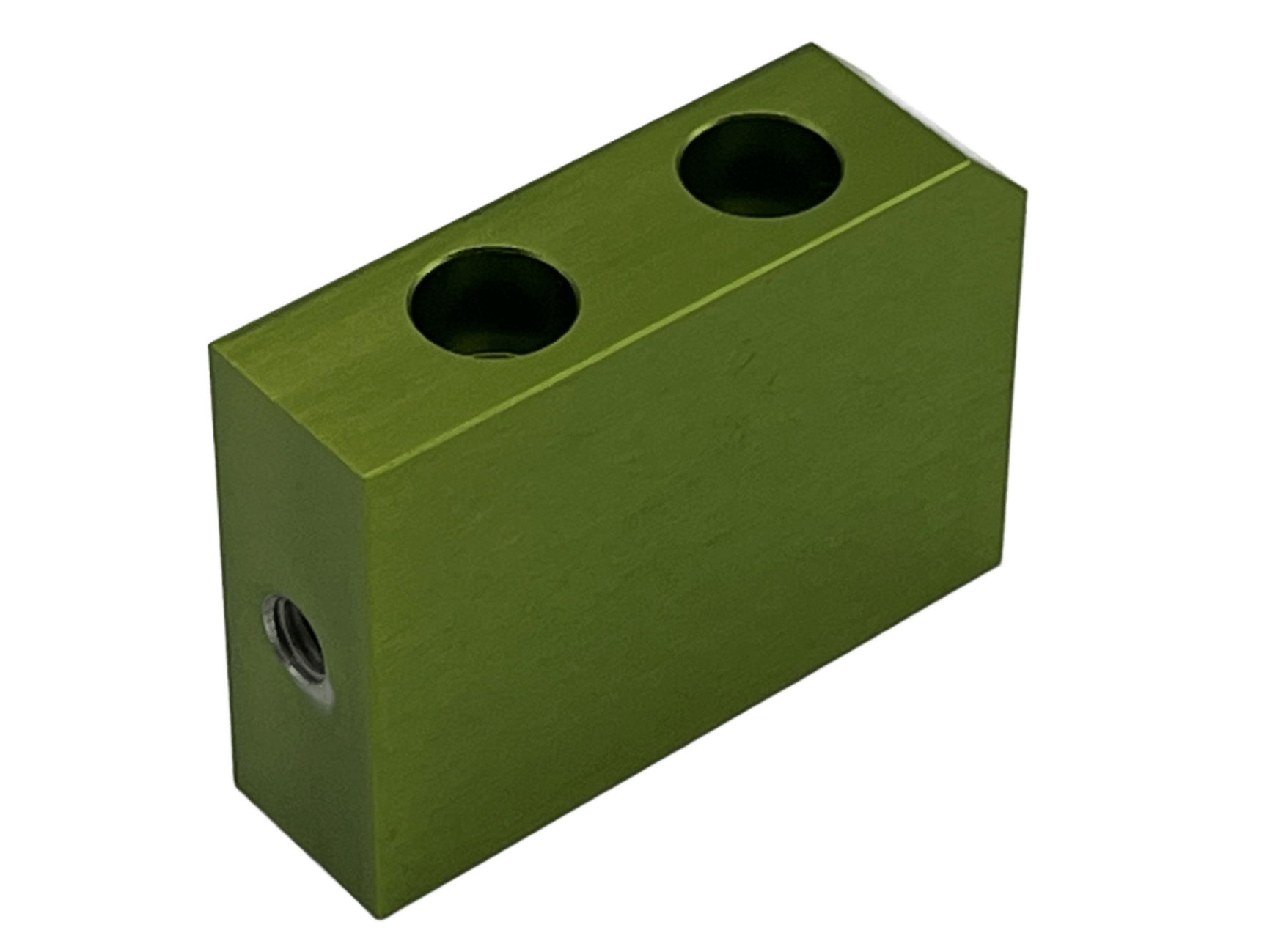

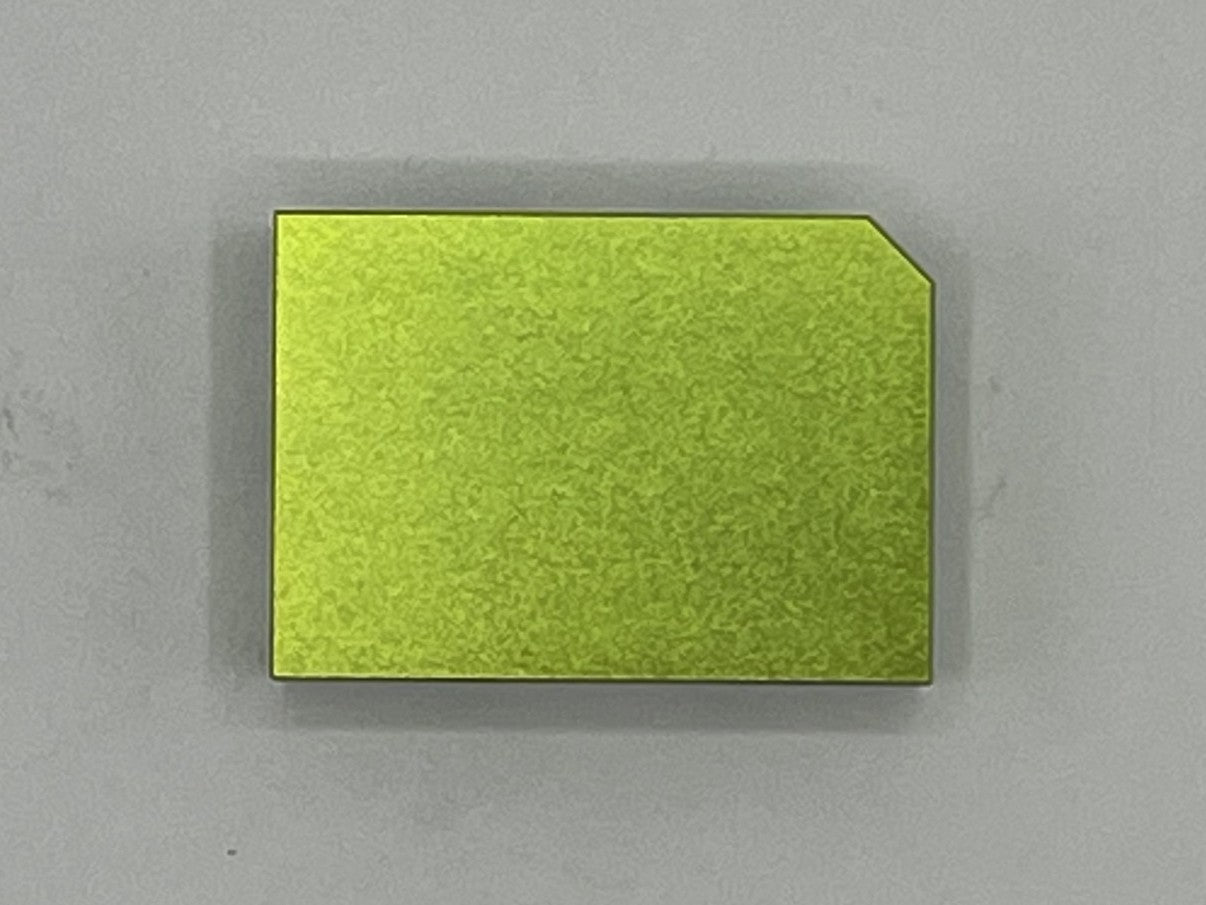

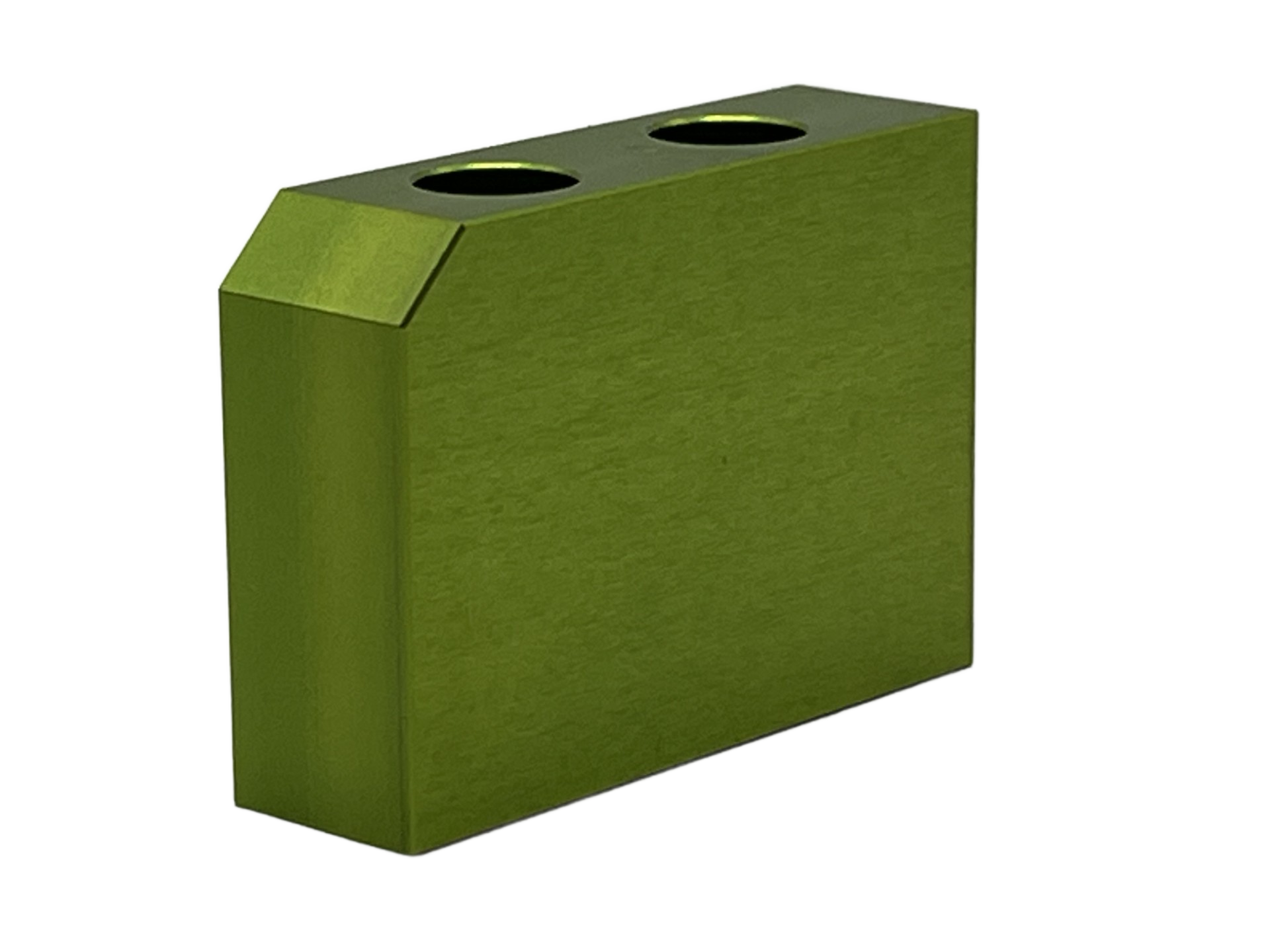

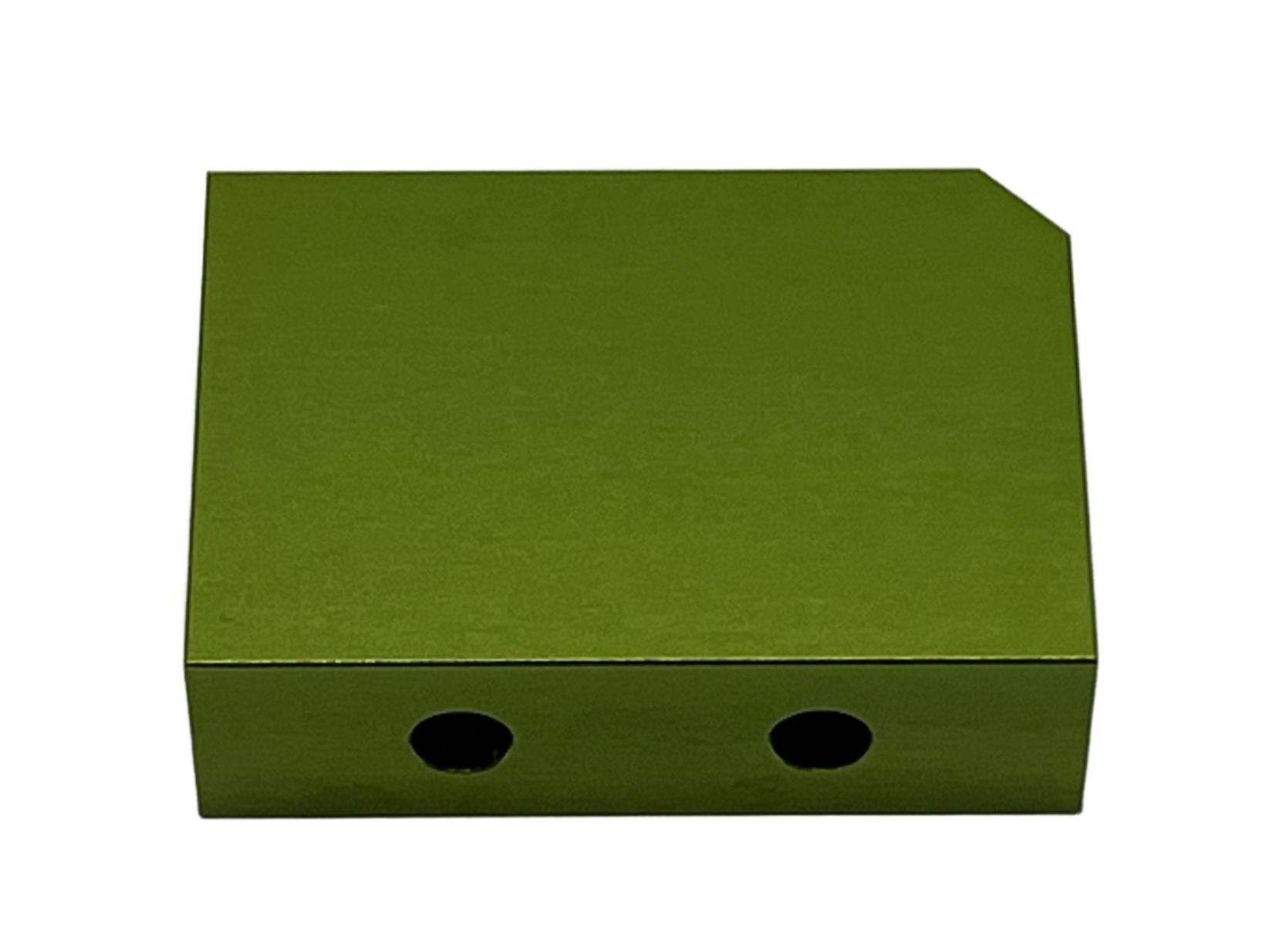

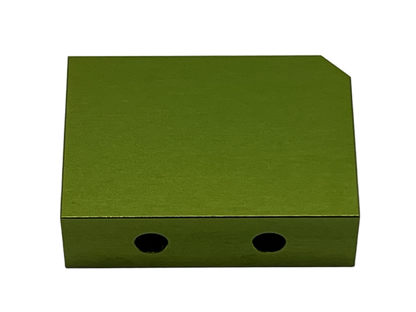

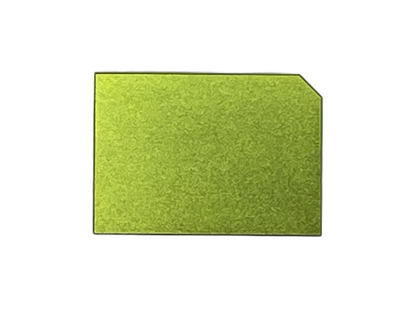

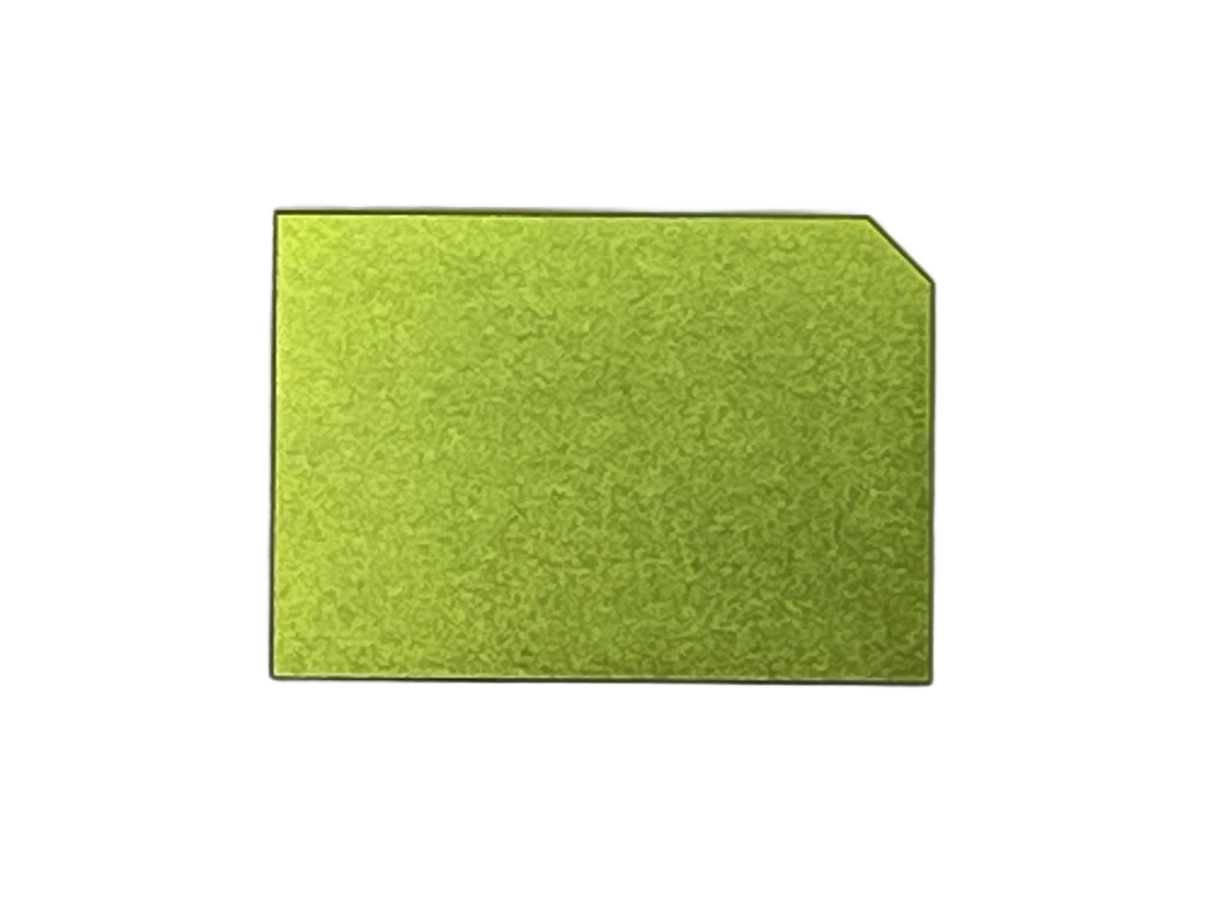

The Support Plate 60 B is the taller version of the support block in the COEL-60 system. Compared to the Support Plate 60 A, it offers a greater installation height of 35.5 mm instead of 27.5 mm, while maintaining a more compact footprint (50 × 45 mm).

It is used where a significant height difference between the axle and the mounting surface needs to be bridged. The M6 ​​thread (10 mm deep) ensures secure fastening.

Made from 7075 aluminum, glass bead blasted and anodized.

Technical data:

• Item number: COEL-60.000.040
• Dimensions: 50 × 45 × 35.5 mm
• Weight: approx. 67 g
• Material: Aluminium 7075
• Surface: Glass bead blasted & anodized
• Tolerances: DIN ISO 2768-m
• Thread: 1× M6 (10 mm)
• STEP file available
